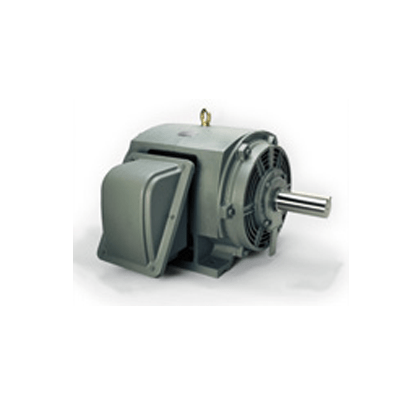

GH0024 Teco Westinghouse Motor 2HP 1800RPM 56 TEFC 208-230/460V 3 Phase

Replaces Teco catalog # G0024.

GH0024 Teco-Westinghouse motor is made with a rolled steel frame, has a steel shaft, and the oversized conduit box contains 9 leads and a grounding terminal. The junction box can rotate in 90 degree increments for mounting convenience; and the motor has F1 mounting configuration (box on left looking at the shaft).

Each motor comes brand new from the factory with a manufacturer's warranty.

Catalog GH0024 is inverter duty and can be used with an adjustable speed drive (VFD): 20:1 VT and 10:1 CT.

Totally enclosed fan cooled motors (TEFC) give winding protection from the elements and dusty or dirty environments; they can be used outside. Use this electric motor for a number of commercial and industrial applications:

• Fire Pumps
• HVAC
• Pumps
• Fans
• Blowers
• Compressors
• Machinery
