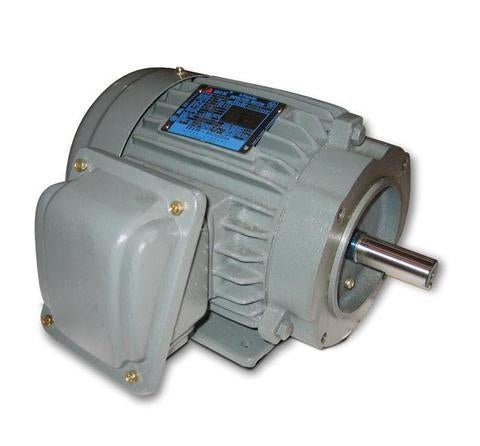

GH0/26C Teco Westinghouse Motor 1/4HP 1200RPM 56C TEFC 208-230/460V 3 Phase

Teco-Westinghouse motor GH0/26C is a premium efficient, low speed AC motor that can be used for multiple applications, from pumps to fans to machinery. This 1/4hp motor is totally enclosed fan cooled, so it can be used outside and in dirty locations.

GH0/26C is a c-face footed motor.

Electric motor features include:

• Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
• Class F Insulation
• Class B Temperature Rise
• NEMA Design B Torques
• Rolled Steel Frame and Main Conduit Box
• Grounding Terminal Inside Main Conduit Box
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
• Designed for 40˚C Ambient Temperature
• Designed for 3300 ft. Elevation
• Bi-Directional Rotation
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
• Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
• Mylar Nameplate
• Rubber Dust Flinger on Drive-End
• 9 Leads
