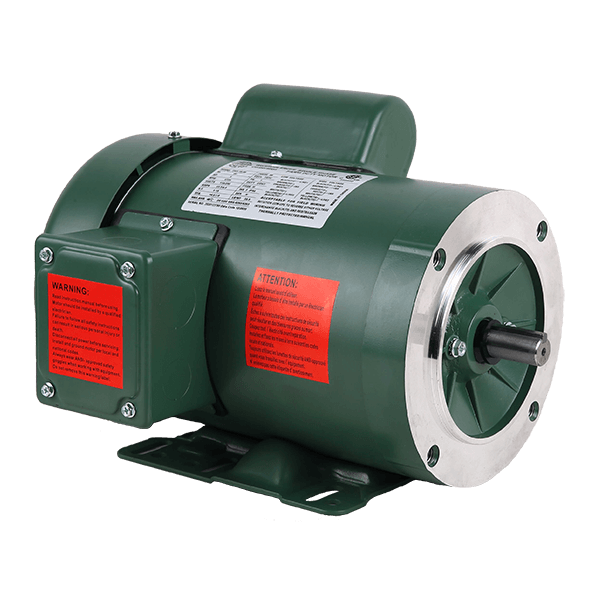

FM1.5-18-56HC Worldwide Motor 1.5HP 1800RPM 56HC TEFC 115/230V 1 Phase

WorldWide Electric’s Farm Duty Motors feature a high torque, robust design that has been field tested to handle the rigors of tough starts and stops, frequent use, always-on applications, and other common agricultural challenges. All WorldWide Electric Farm Duty Motors feature Totally Enclosed Fan Cooled (TEFC) enclosures, Class F insulation, and a 1.15 Service Factor.

• 1.5 HP
• 1800 RPM
• Totally Enclosed Fan Cooled (TEFC) Enclosure
• IP54 Protection
• High Torque
• 1.15 SF
• Class F Insulation
• Rigid Base
• 56H Frame is double punched
• Vacuum Pressure Impregnation (VPI) System
• Anti-Rust Film Applied to Rotor
• Capacitor Start / Induction Run (1/3-1 HP)
• Capacitor Start / Capacitor Run (1.5-2 HP) for Reduced Amperage and High Torque
• With Manual Overload
• Improved Shaft Seal on Drive-End Protects Drive-End Bearing from Moisture and Contaminants
