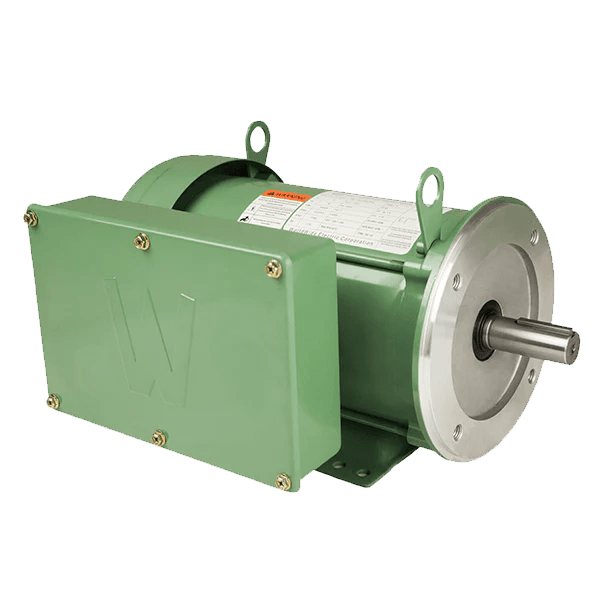

FD5-18-184TC Worldwide Motor 5HP 1800RPM 184TC TEFC 208-230V 1 Phase

SKU: FD5-18-184TC
$848.59
$1,102.06 Sale $848.59

Product details

  • SKU FD5-18-184TC
  • Brand Worldwide
  • Phase 1
  • RPM 1201-1800
  • HP / KW 5
  • Application Farm/Agriculture
  • Frame 182 & 184
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230V

Share

Description Reviews

WorldWide Electric’s Farm Duty Motors feature a high torque, robust design that has been field tested to handle the rigors of tough starts and stops, frequent use, always-on applications, and other common agricultural challenges. All WorldWide Electric Farm Duty Motors feature Totally Enclosed Fan Cooled (TEFC) enclosures, Class F insulation, and a 1.15 Service Factor.

• 2-10 HP
• 1800 RPM
• 208-230 Volt
• Totally Enclosed Fan Cooled (TEFC) Enclosure
• IP55 Protection
• 1.15 SF
• Class F Insulation
• Rigid Base and C-Face with Feet
• With Manual Overload
• Shaft Seals on Both Ends of the Motor
