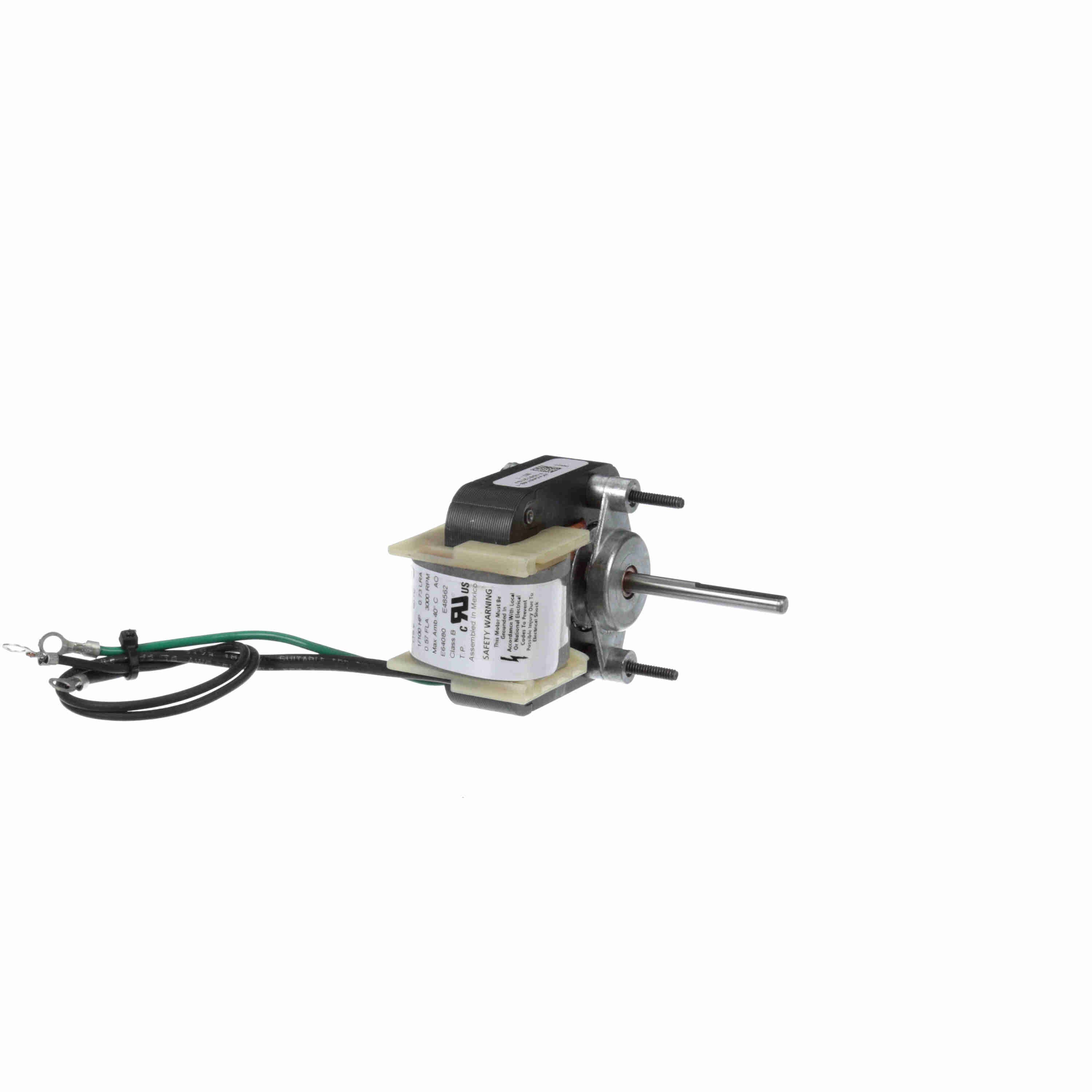

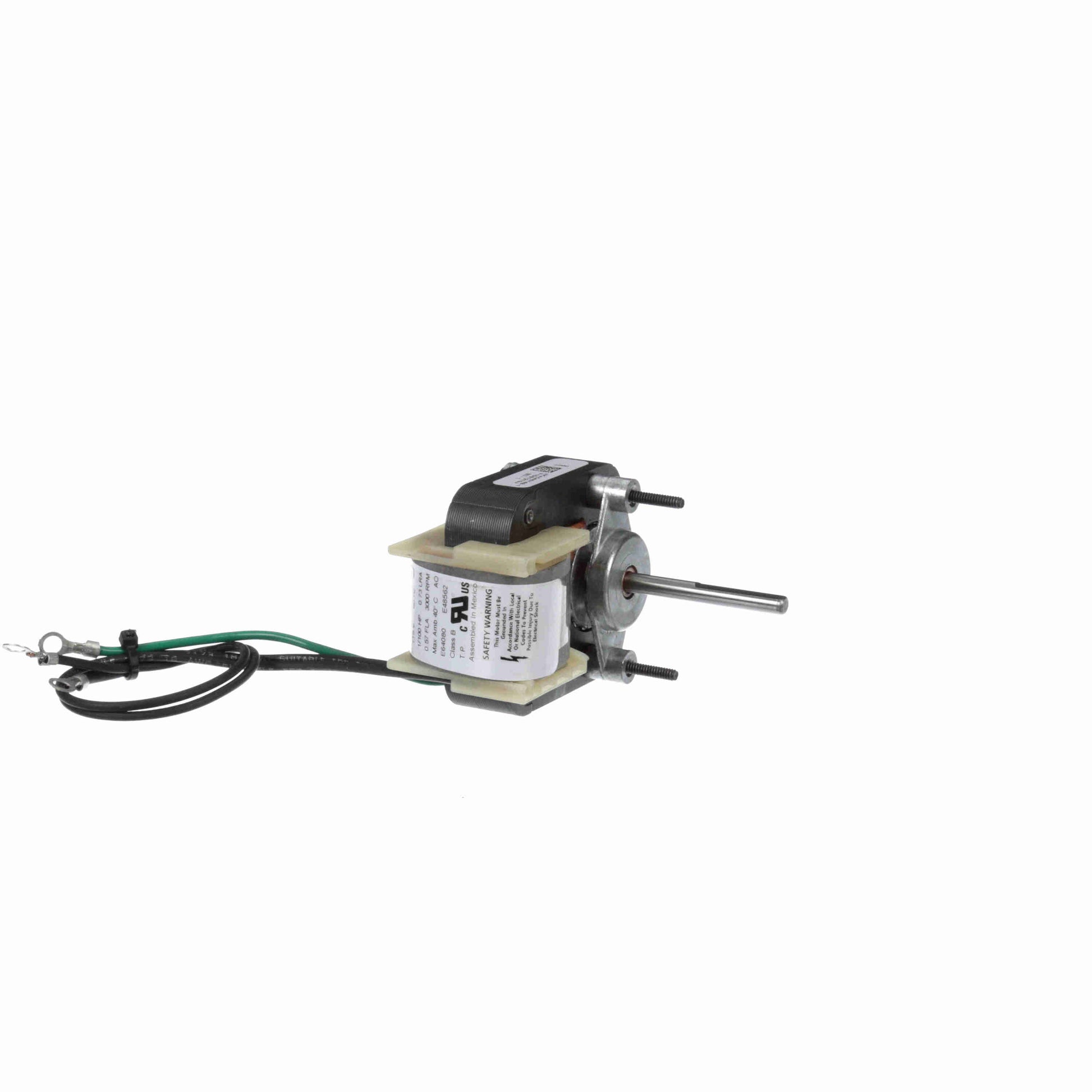

K115 Fasco Motor 3000 RPM, 240 V, 1 Phase

* Image is for reference only

K115 Fasco Motor 3000 RPM, 240 V, 1 Phase

SKU: K115
$48.53
Sale $48.53
Description
  • This item replaces Century C01329
  • Heating - Refrigeration - Ventilating Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .2178" Diameter Shaft with Flat
  • 13"/11" Leads with Ring Terminal
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/100 Hp
Output KW: 0.01 kW Voltage: 115 V
Speed: 3000 rpm Service Factor: 1
Frame: C-FRAME Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .57 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 3.58 in
Shaft Diameter: 0.218 in Shaft Extension: 1.82 in

General Specifications

UPC: 818508023540 Weight: 1.50 LB
Packaged Length: 11.50 IN Packaged Width: 9.25 IN
Packaged Height: 3.63 IN HTC: 8501.10.4020
Country of Origin: Mexico
