D653 Fasco Motor 1/20 HP, 3000/3430 RPM, 230/460 V, 1 Phase

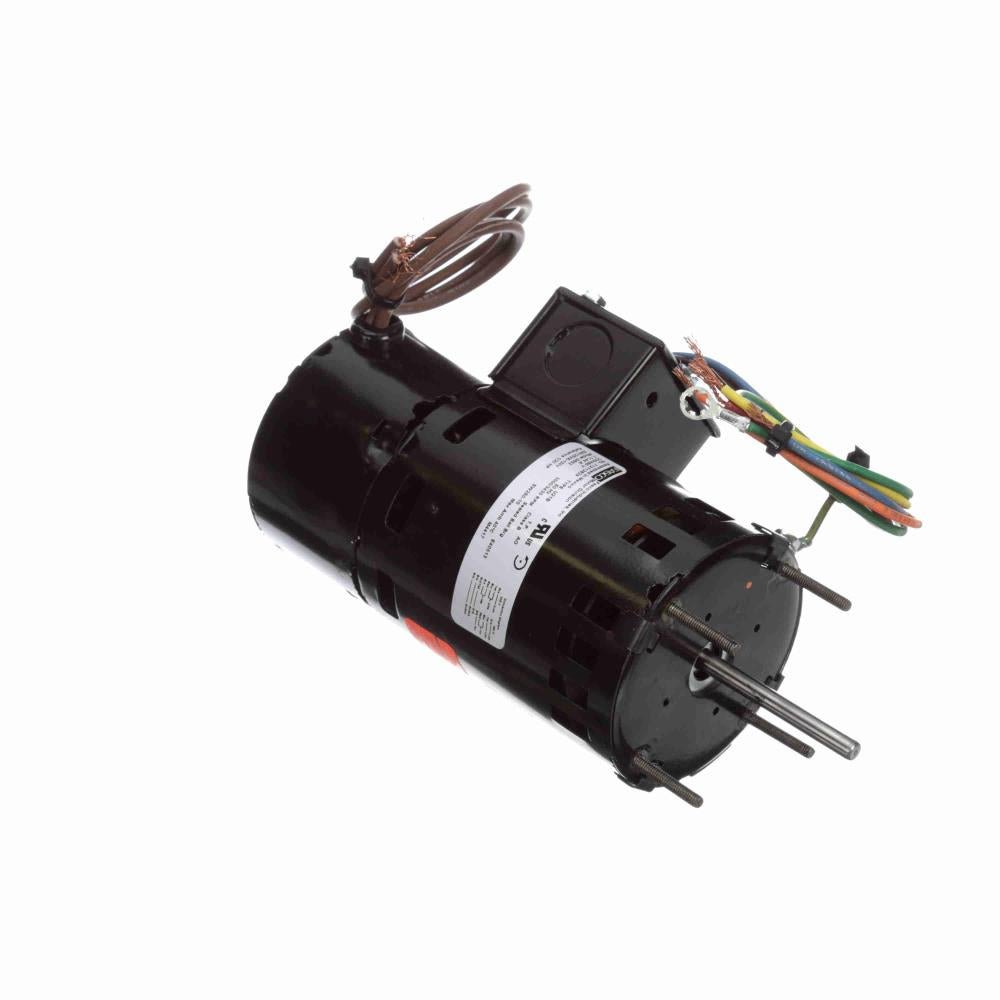

* Image is for reference only

D653 Fasco Motor 1/20 HP, 3000/3430 RPM, 230/460 V, 1 Phase

SKU: D653
$328.03
Sale $328.03
Description
  • D653
    OEM NAME: REZNOR
  • This item replaces Century 653
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Shaft with Flat
  • Conduit Box, 8" Power Leads, 14" Switch Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 230/460 V
Speed: 3000/3430 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.1/0.44 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 8.78 in
Frame Length: 4.19 in Shaft Diameter: 0.250 in
Shaft Extension: 2.2 in

General Specifications

UPC: 818508021126 Weight: 4.80 LB
Packaged Length: 10.13 IN Packaged Width: 5.38 IN
Packaged Height: 3.50 IN Country of Origin: Mexico
