D1100 Fasco Fan Motor

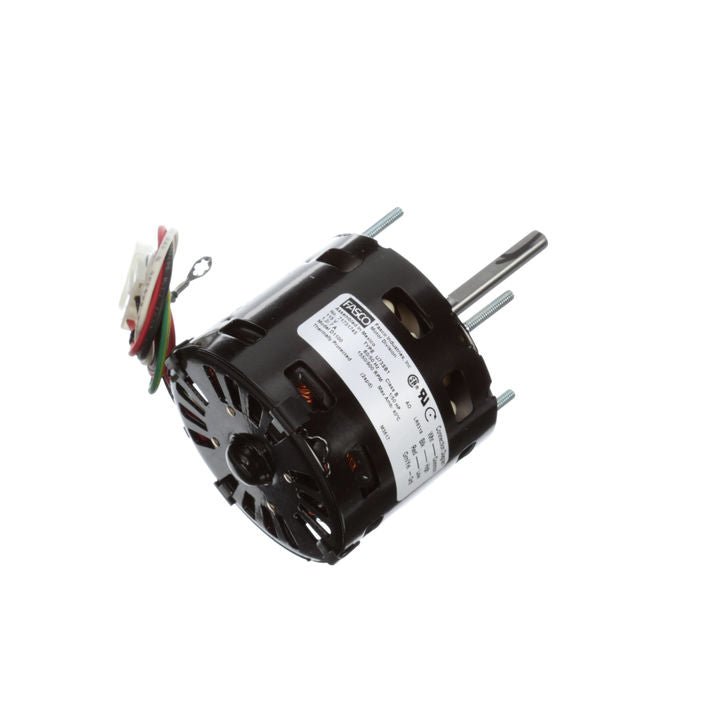

* Image is for reference only

D1100 Fasco Fan Motor | 1/50HP 1550RPM 3.3" OPEN 115V Single Phase

SKU: D1100
$126.81
Sale $126.81
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame, Open Shell, Enclosed Opposite Shaft End End-Frame, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads with Quick Connect Terminal Housing
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/50 Hp
Output KW: 0.01 kW Voltage: 115 V
Speed: 1550/900 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.20/0.70 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4/6 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.51 in
Frame Length: 2.57 in Shaft Diameter: 0.313 in
Shaft Extension: 2.45 in

General Specifications

UPC: 815585028147 Weight: 3.20 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
