D0614 Fasco Motor 1/10 HP, 1550 RPM, 115/230 V, 1Phase

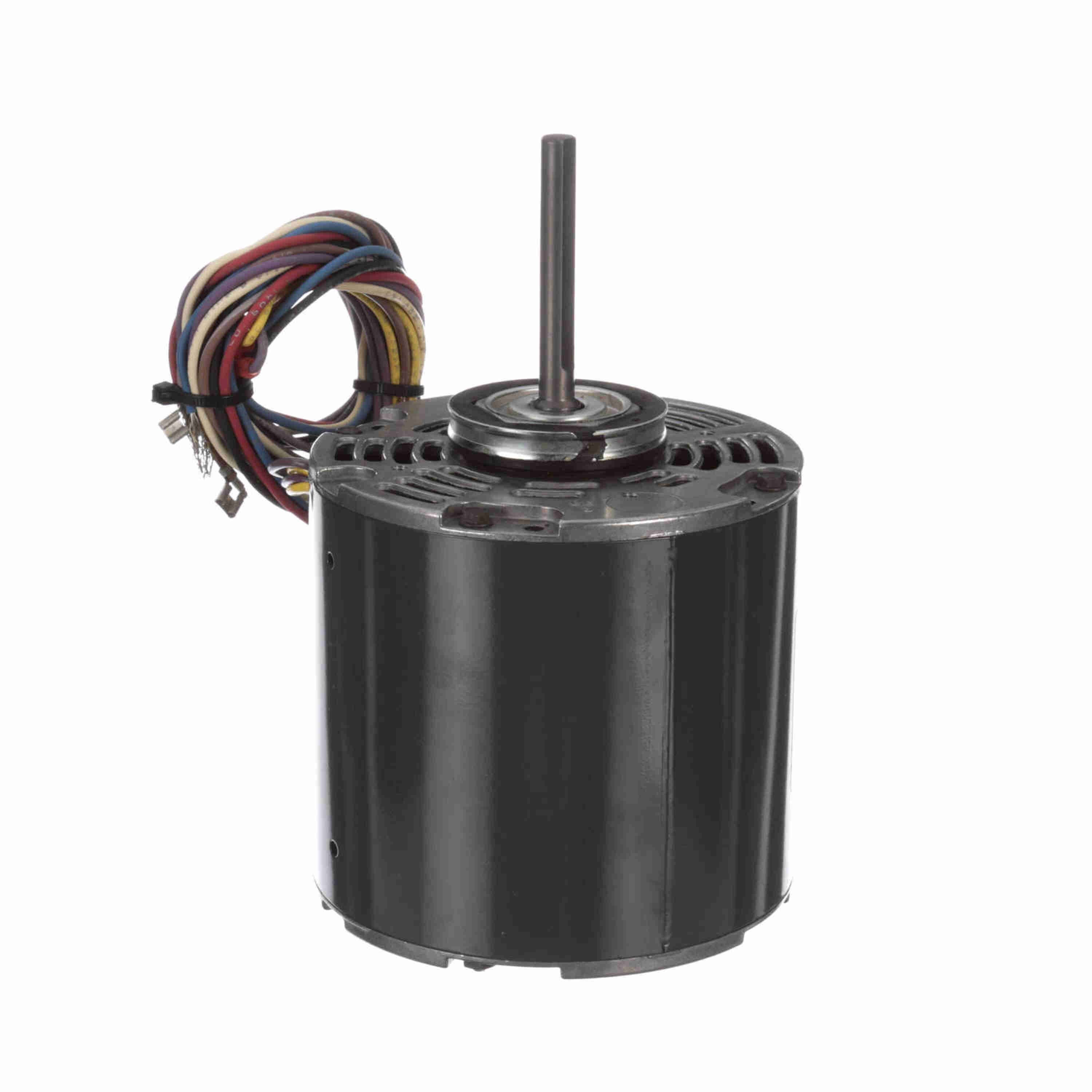

* Image is for reference only

D0614 Fasco Motor 1/10 HP, 1550 RPM, 115/230 V, 1Phase

SKU: D0614
$222.57
Sale $222.57
Description
  • This item replaces Century 614 / 615
  • Refrigeration - Unit Heater - Space Heater Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 3/8" Diameter Shaft with Flat
  • 30" Leads
  • Tapped Holes for Shaft End Mounting, Resilient Ring Mounting
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/10 Hp
Output KW: 0.07 kW Voltage: 115/230 V
Speed: 1550 rpm Service Factor: 1
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.93-0.97 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Resilient Rings Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 4.50 in
Shaft Diameter: 0.375 in Shaft Extension: 3.25 in

General Specifications

UPC: 818508028316 Weight: 9.00 LB
Packaged Length: 10.00 IN Packaged Width: 5.13 IN
Packaged Height: 5.13 IN Country of Origin: Mexico
