Home » D0314 Fasco Fan Motor | 1/40 HP, 1550 RPM, 208-230V, Single Phase

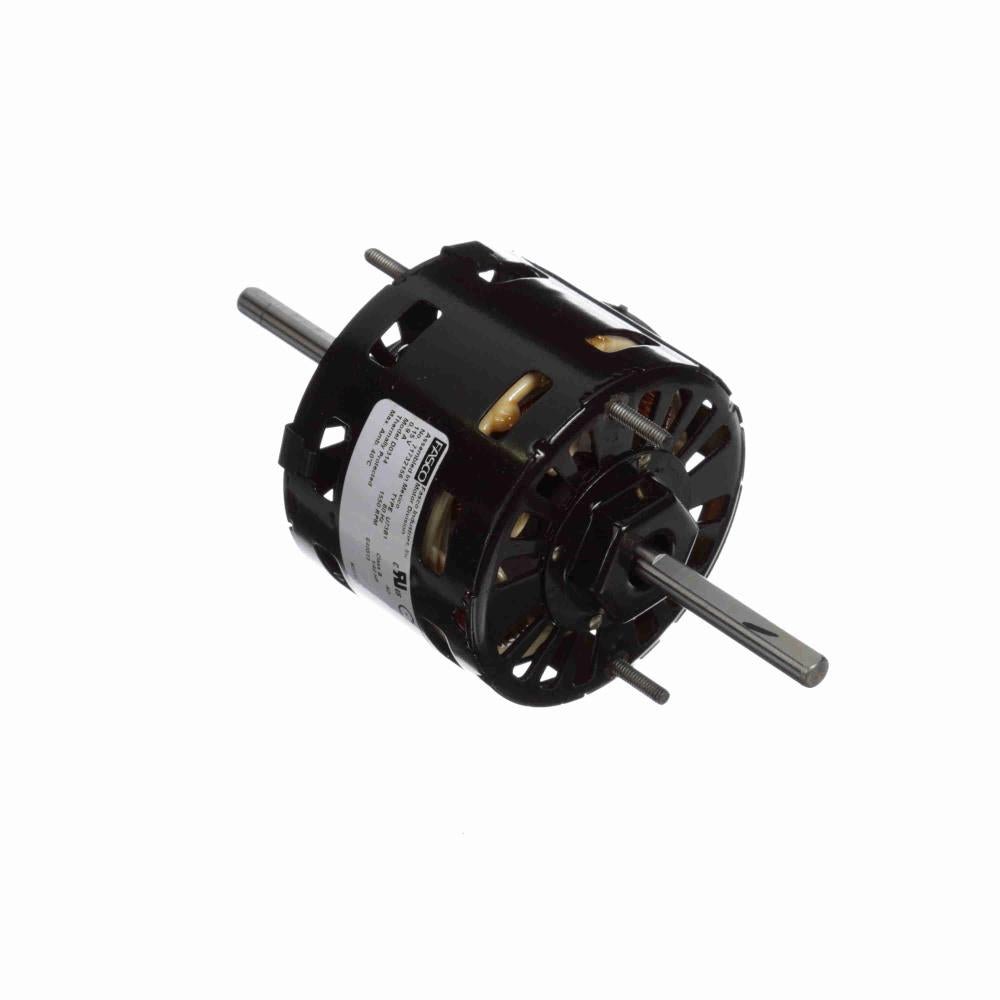

D0314 Fasco Condenser Fan Motor 1/40HP

* Image is for reference only

D0314 Fasco Fan Motor | 1/40 HP, 1550 RPM, 208-230V, Single Phase

SKU: D0314
$144.93
Sale $144.93
Description
  • This item replaces Century 9658 / 9659
  • Room Air Conditioning and Double Blower Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Double Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/40 Hp
Output KW: 0.02 kW Voltage: 115 V
Speed: 1550 rpm Frame: 3.3
Enclosure: Open Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 0.90 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: N CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 7.38 in
Frame Length: 2.56 in Shaft Diameter: 0.313 in
Shaft Extension: 2.44 in

General Specifications

UPC: 815585027256 Weight: 2.96 LB
Packaged Length: 11.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
