D0096 Fasco Motor 1/15 HP, 1050 RPM, 115 V, 1 Phase

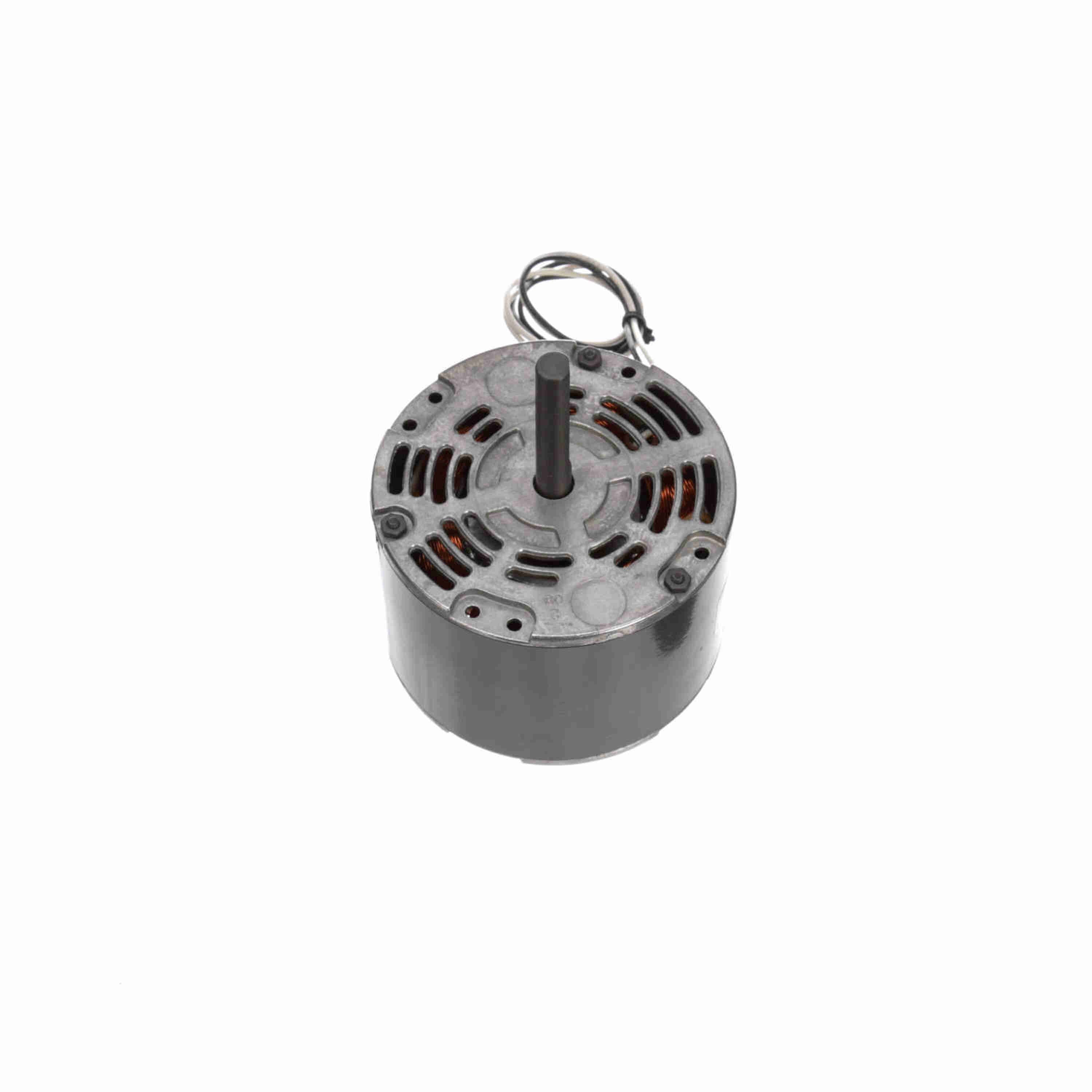

* Image is for reference only

D0096 Fasco Motor 1/15 HP, 1050 RPM, 115 V, 1 Phase

SKU: D0096
$214.80
Sale $214.80
Description
  • This item replaces Century 606 / 96 and Fasco D140
  • Furnace Blower - Air Handler - Fan Coil Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 3/8" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Opposite Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15-1/30 Hp
Output KW: 0.05 kW Voltage: 115 V
Speed: 1050 rpm Service Factor: 1.0
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.4 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 3.56 in
Shaft Diameter: 0.375 in Shaft Extension: 2.34 in

General Specifications

UPC: 818508028828 Weight: 5.00 LB
Packaged Length: 15.00 IN Packaged Width: 5.13 IN
Packaged Height: 5.13 IN Country of Origin: Mexico
