K683 Fasco Ventilation C-Frame Motor

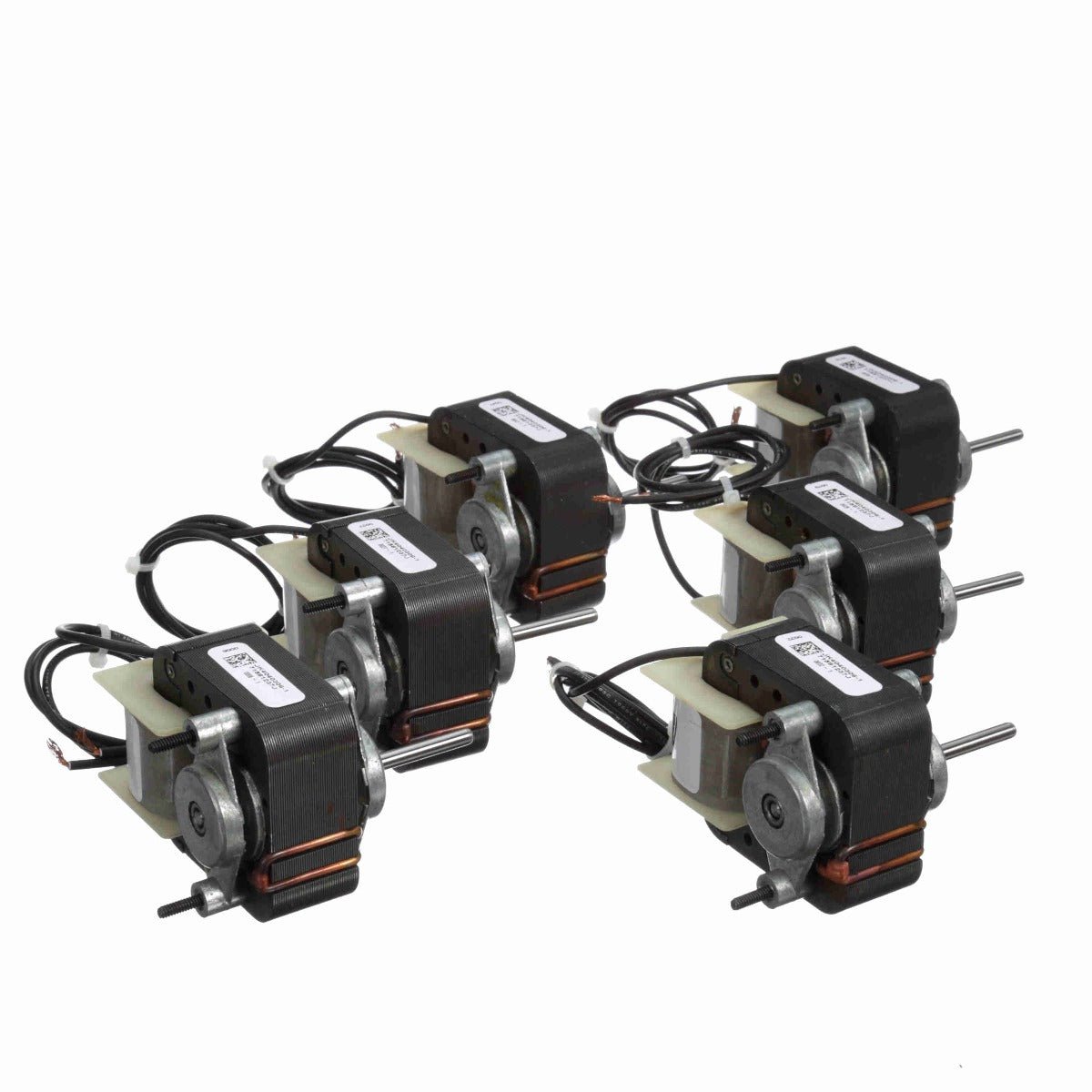

* Image is for reference only

K683 Fasco Ventilation C-Frame Motor | 1/100HP, 3000 RPM, 240V, Single Phase

SKU: K683
$59.52
Sale $59.52
Description
  • Heating - Refrigeration - Ventilating Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .1875" Diameter Shaft
  • 13.25"/12.25" Leads with .38" Strip
  • Extended Studs Opposite Shaft end
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/100 Hp
Output KW: 0.01 kW Voltage: 240 V
Speed: 3000 rpm Service Factor: 1
Frame: C-FRAME Enclosure: Open Enclosed
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .30 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Round Overall Length: 3.78 in
Shaft Diameter: 0.188 in Shaft Extension: 1.30 in

General Specifications

UPC: 818508021775 Weight: 1.80 LB
Packaged Length: 11.50 IN Packaged Width: 9.25 IN
Packaged Height: 3.63 IN Country of Origin: Mexico
