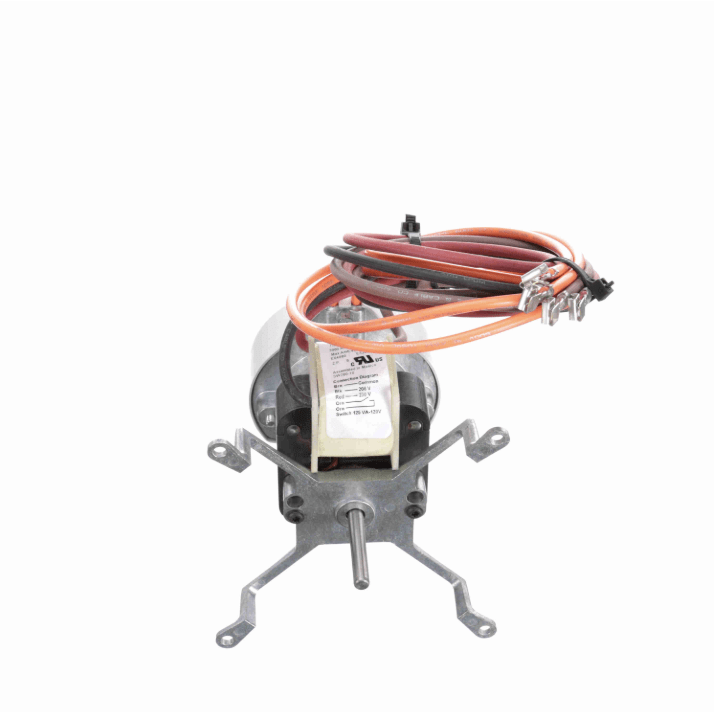

K628 Fasco Motor 1/200 HP, 3000 RPM, 230 V, 1 Phase

* Image is for reference only

K628 Fasco Motor 1/200 HP, 3000 RPM, 230 V, 1 Phase

SKU: K628
$141.05
Sale $141.05
Description
  • K628
    OEM NAME: KEEPRITE
  • OEM Direct Replacement Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected, One-Shot Fuse
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Shaft
  • 30"/28" Leads with Flag Terminal
  • Flex Mount
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/200 Hp
Output KW: 0.01 kW Voltage: 208/230 V
Speed: 3000 rpm Service Factor: 1
Frame: C-FRAME Enclosure: Open Enclosed
Thermal Protection: Impedance Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .25 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise
Mounting: Bracket Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Round Overall Length: 5.46 in
Shaft Diameter: 0.250 in Shaft Extension: 1.50 in

General Specifications

UPC: 818508021713 Weight: 2.80 LB
Packaged Length: 7.50 IN Packaged Width: 5.63 IN
Packaged Height: 5.75 IN Country of Origin: Mexico
