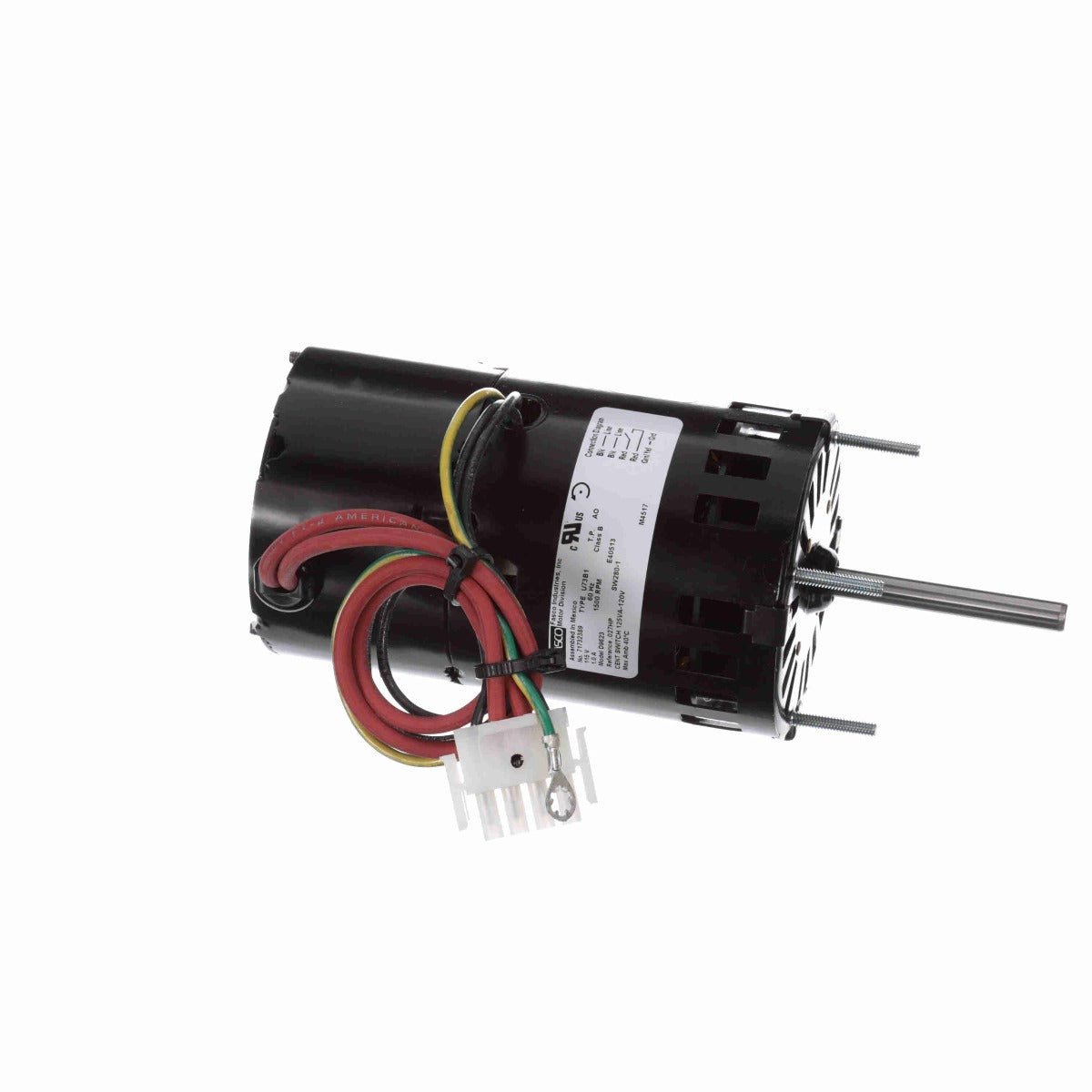

D9623 Fasco Motor 1/40 HP, 1500 RPM, 115 V, 1 Phase, OEM

* Image is for reference only

D9623 Fasco Motor 1/40 HP, 1500 RPM, 115 V, 1 Phase, OEM

SKU: D9623
$181.16
Sale $181.16
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame and Shell, Enclosed Lead End End-Frame, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 10" Leads with Terminal Housing
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 0.027 Hp
Output KW: 0.02 kW Voltage: 115 V
Speed: 1500 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.00 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 8.37 in
Frame Length: 3.20 in Shaft Diameter: 0.313 in
Shaft Extension: 2.5 in

General Specifications

UPC: 818508020846 Weight: 3.50 LB
Packaged Length: 9.50 IN Packaged Width: 4.25 IN
Packaged Height: 4.25 IN Country of Origin: Mexico
