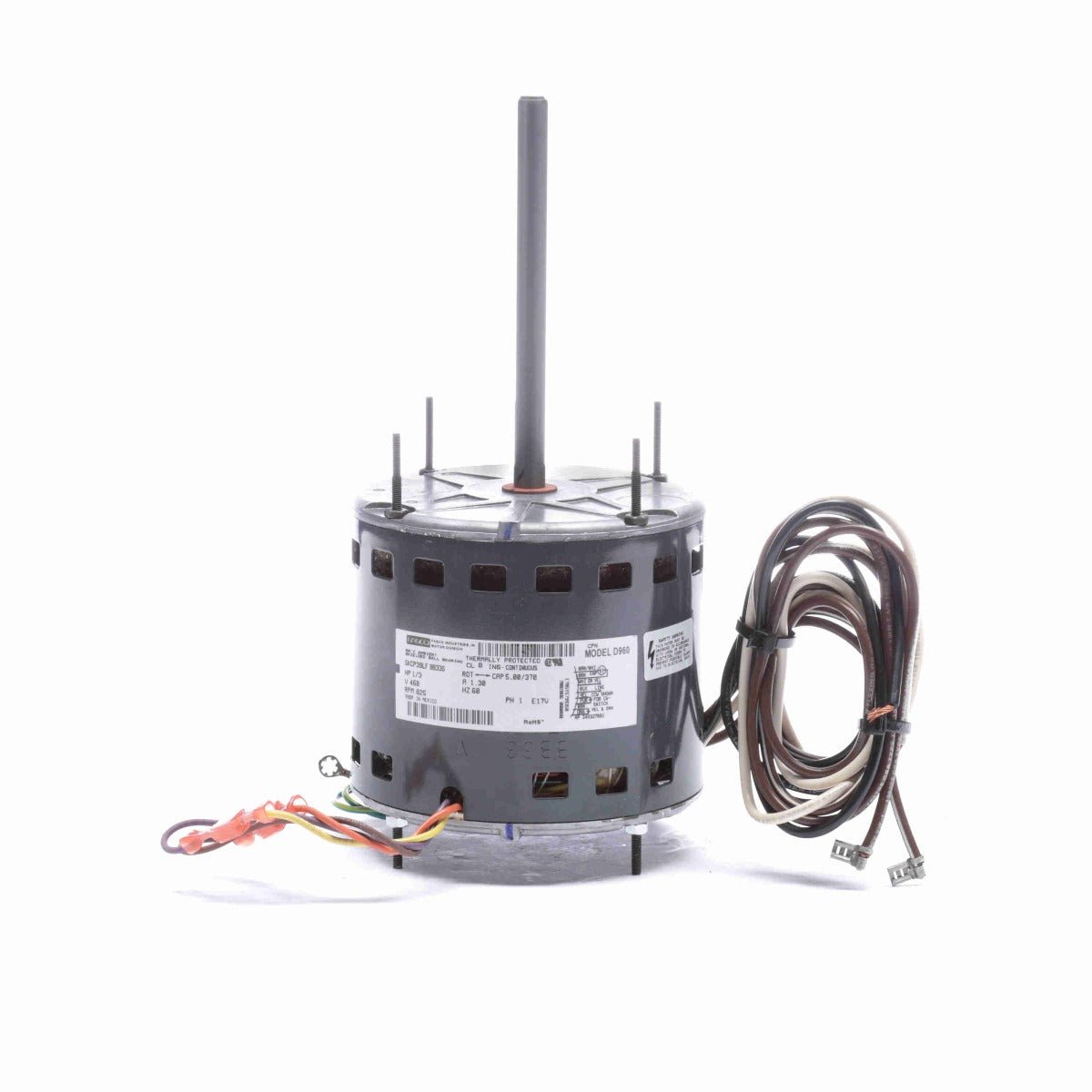

D960 Fasco Motor 1/3 HP, 825 RPM, 460 V, 1Phase

* Image is for reference only

D960 Fasco Motor 1/3 HP, 825 RPM, 460 V, 1Phase

SKU: D960
$319.62
Sale $319.62
Description
  • Condenser Fan motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Lead End End-Frame and Shell, Enclosed Shaft End End-Frame, Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 37" Leads
  • Extended Studs Shaft End and Lead End, Belly Band
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/3 Hp
Output KW: 0.25 kW Voltage: 460 V
Speed: 825 rpm Service Factor: 1
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 60 °C
Frequency: 60 Hz Current: 1.30 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 8
Rotation: Counterclockwise/Clockwise Mounting: Extended Studs
Motor Orientation: Any Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Double Flat Overall Length: 11.06 in
Frame Length: 4.32 in Shaft Diameter: 0.500 in
Shaft Extension: 6.00 in

General Specifications

UPC: 818508020792 Weight: 14.25 LB
Packaged Length: 14.06 IN Packaged Width: 6.04 IN
Packaged Height: 6.02 IN
