D895 Fasco Motor 1/8 HP, 1650 RPM, 208-230 V, OEM, 1 Phase

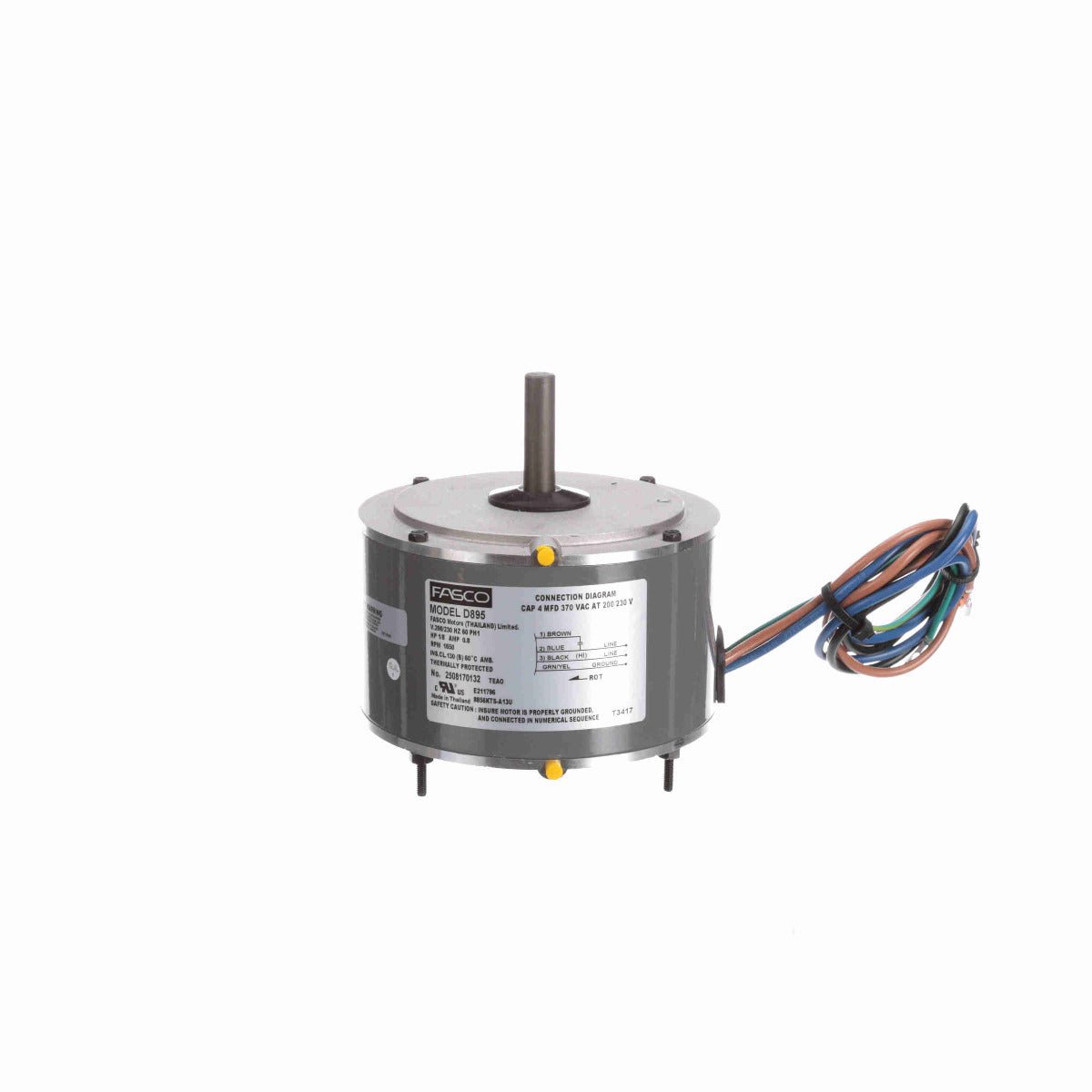

* Image is for reference only

D895 Fasco Motor 1/8 HP, 1650 RPM, 208-230 V, OEM, 1 Phase

SKU: D895
$183.10
Sale $183.10
Description
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • (1) 20" Lead with Flag Terminal, (2) 20" Leads with Quick Connect Teriminal
  • Extended Studs Lead End, Belly Band
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/8 Hp
Output KW: 0.10 kW Voltage: 200-230 V
Speed: 1650 rpm Service Factor: 1
Frame: 48 Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 60 °C
Frequency: 60 Hz Current: 0.72 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 3.54 in
Shaft Diameter: 0.500 in Shaft Extension: 2.0 in

General Specifications

UPC: 818508020518 Weight: 9.50 LB
Packaged Length: 15.00 IN Packaged Width: 5.63 IN
Packaged Height: 5.63 IN Country of Origin: Thailand
