D847 Fasco Motor 1/8 HP, 1125 RPM, 208-230 V, OEM, 1 Phase

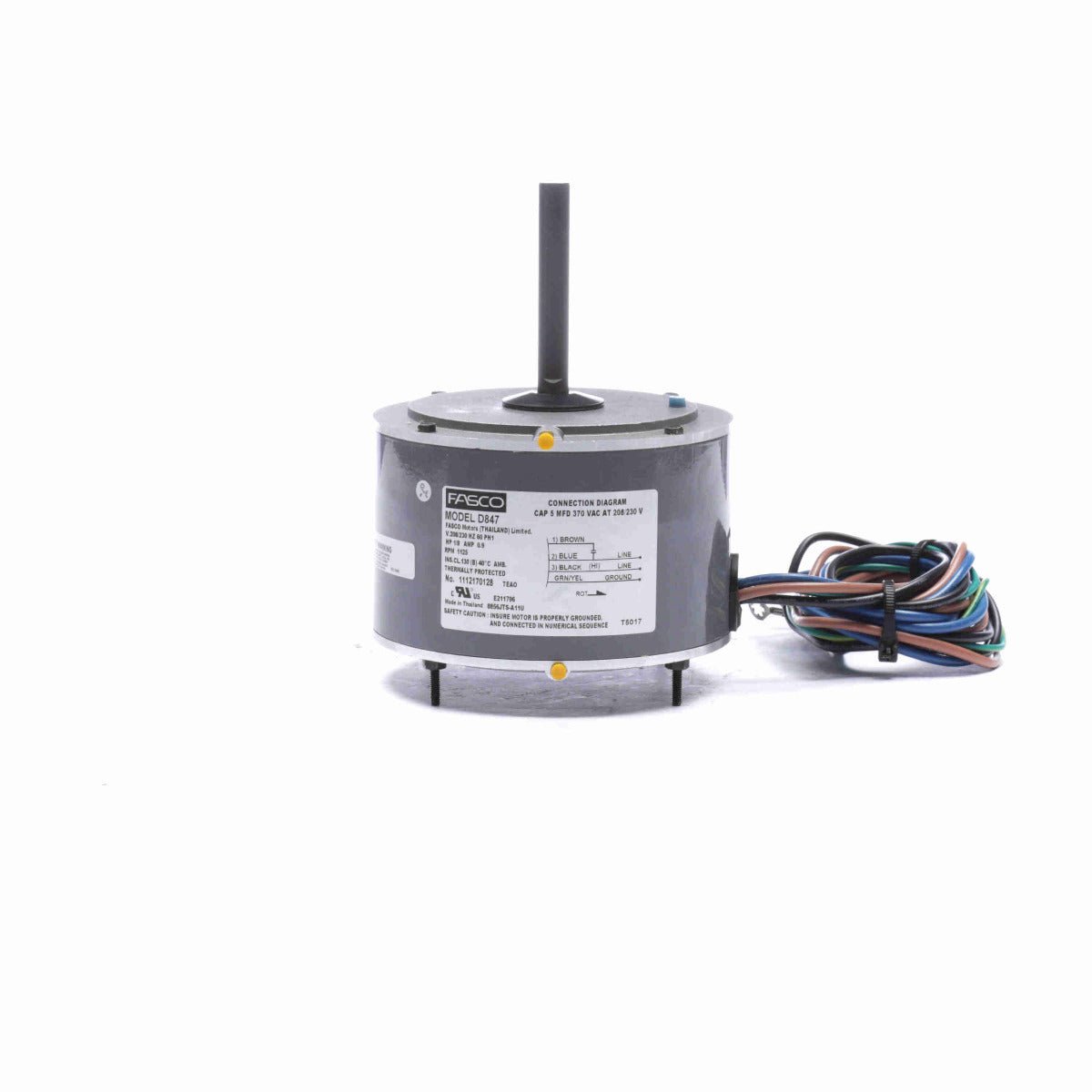

* Image is for reference only

D847 Fasco Motor 1/8 HP, 1125 RPM, 208-230 V, OEM, 1 Phase

SKU: D847
$271.74
Sale $271.74
Description
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 54" Power Leads with Flag Terminal, 54" Capacitor Lead with Quick Connect Terminal
  • Extended Studs Lead End, Belly Band
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/8 Hp
Output KW: 0.10 kW Voltage: 208-230 V
Speed: 1125 rpm Service Factor: 1
Frame: 48 Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.63 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 3.78 in
Shaft Diameter: 0.500 in Shaft Extension: 3.46 in

General Specifications

UPC: 818508020501 Weight: 10.85 LB
Packaged Length: 15.00 IN Packaged Width: 5.63 IN
Packaged Height: 5.63 IN Country of Origin: Thailand
