D832 Fasco Motor 1/8 HP, 825 RPM, 208-230 V, OEM, 1 Phase

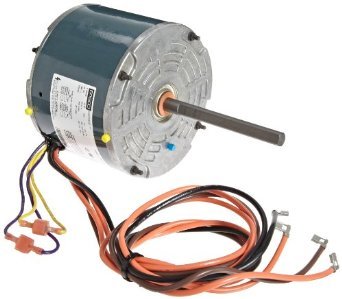

* Image is for reference only

D832 Fasco Motor 1/8 HP, 825 RPM, 208-230 V, OEM, 1 Phase

SKU: D832
$177.93
Sale $177.93
Description
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 37" Power Leads, 40" Capacitor Leads
  • Extended Studs, Shell Mounting Holes, Belly Band Mount
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/8 Hp
Output KW: 0.10 kW Voltage: 208-230 V
Speed: 825 rpm Service Factor: 1
Frame: 48 Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.10 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 8
Rotation: Counterclockwise/Clockwise Mounting: Extended Studs
Motor Orientation: Any Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Double Flat Overall Length: 9.06 in
Frame Length: 3.57 in Shaft Diameter: 0.500 in
Shaft Extension: 4.75 in

General Specifications

UPC: 818508020495 Weight: 10.00 LB
Packaged Length: 14.24 IN Packaged Width: 6.04 IN
Packaged Height: 6.02 IN Country of Origin: India
