D827 Fasco Motor 1/8 HP, 700 RPM, 115 V, OEM, 1 Phase

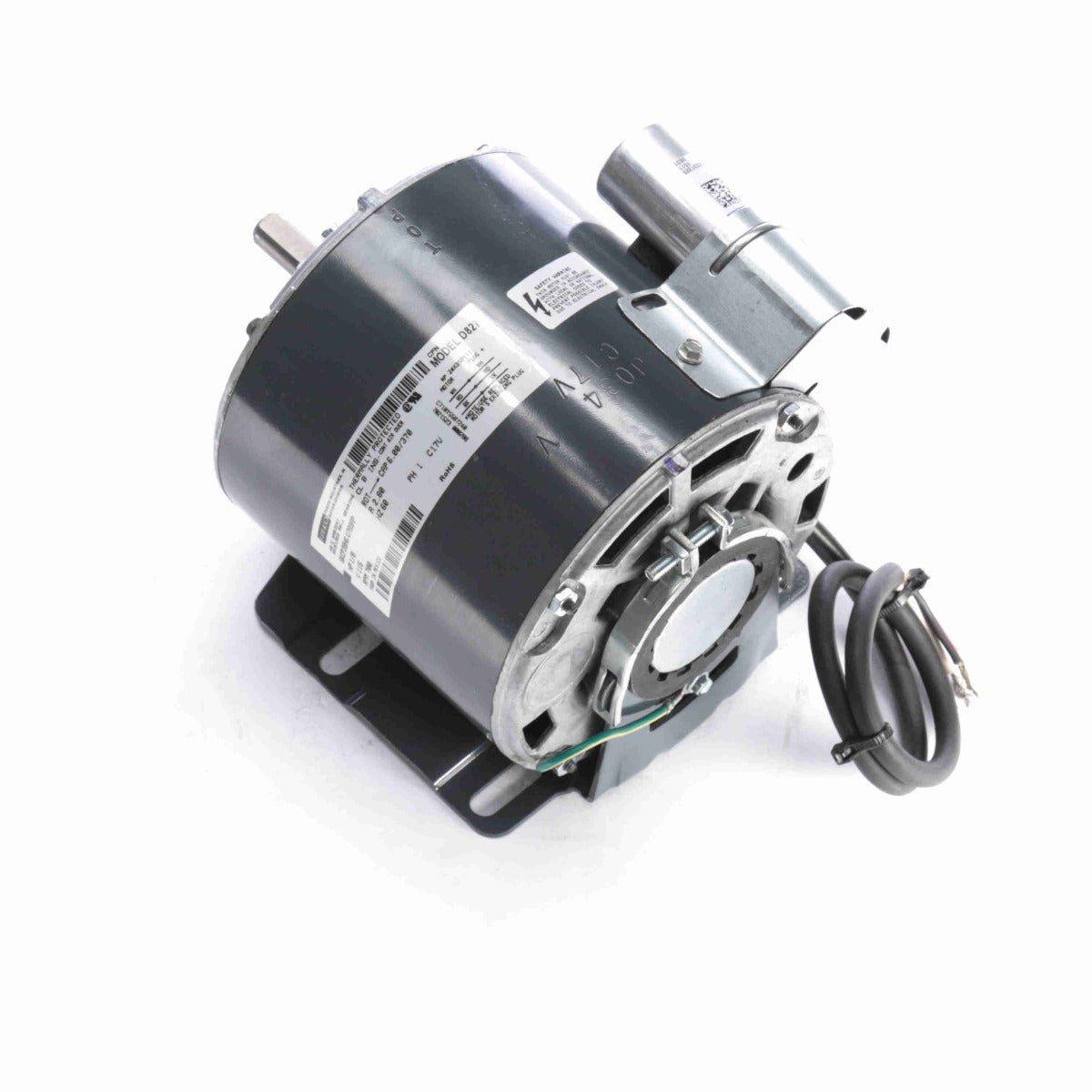

* Image is for reference only

D827 Fasco Motor 1/8 HP, 700 RPM, 115 V, OEM, 1 Phase

SKU: D827
$232.27
Sale $232.27
Description
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 20" Leads
  • Resilient Base
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/8 Hp
Output KW: 0.10 kW Voltage: 115 V
Speed: 700 rpm Service Factor: 1
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.80 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 8
Rotation: Clockwise Mounting: Resilient Base
Motor Orientation: Hor Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 7.89 in
Frame Length: 4.82 in Shaft Diameter: 0.500 in
Shaft Extension: 1.50 in

General Specifications

UPC: 818508020457 Weight: 14.00 LB
Packaged Length: 14.12 IN Packaged Width: 8.38 IN
Packaged Height: 8.00 IN Country of Origin: India
