D7748 Fasco Motor 1/3 HP, 1075 RPM, 208-230 V, 1 Phase

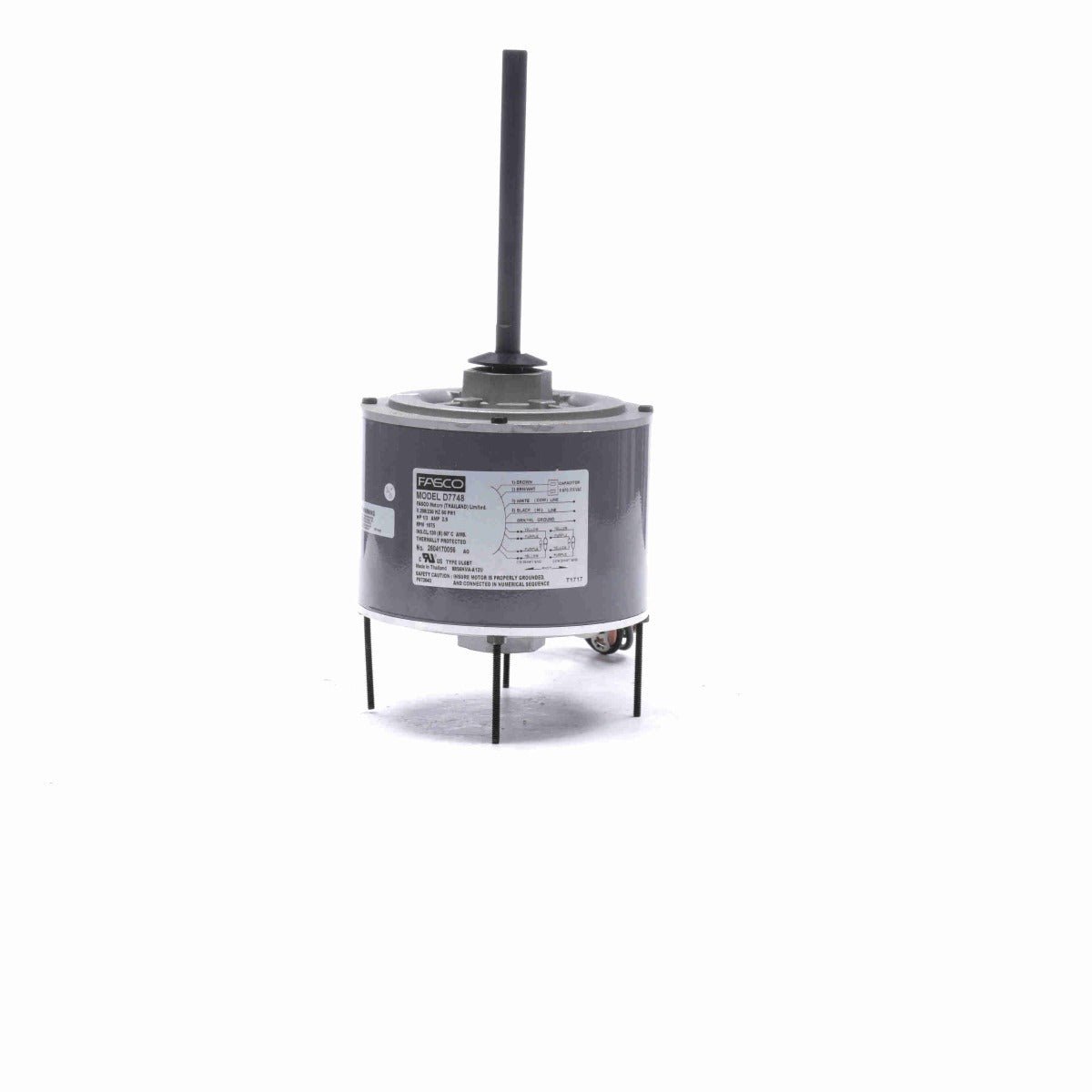

* Image is for reference only

D7748 Fasco Motor 1/3 HP, 1075 RPM, 208-230 V, 1 Phase

SKU: D7748
$113.23
Sale $113.23
Description
  • This item replaces Century F1036S
  • Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Lead End, Enclosed Shell and Shaft End End-Frame, Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Lead End, Belly Band
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/3 Hp
Output KW: 0.25 kW Voltage: 208-230 V
Speed: 1075 rpm Service Factor: 1
Frame: 48 Enclosure: Semi Enclosed
Thermal Protection: Automatic Ambient Temperature: 60 °C
Frequency: 60 Hz Current: 2.9 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Double Flat Frame Length: 4.21 in
Shaft Diameter: 0.500 in Shaft Extension: 6.5 in

General Specifications

UPC: 818508020174 Weight: 13.00 LB
Packaged Length: 15.00 IN Packaged Width: 5.63 IN
Packaged Height: 5.63 IN Country of Origin: Thailand
