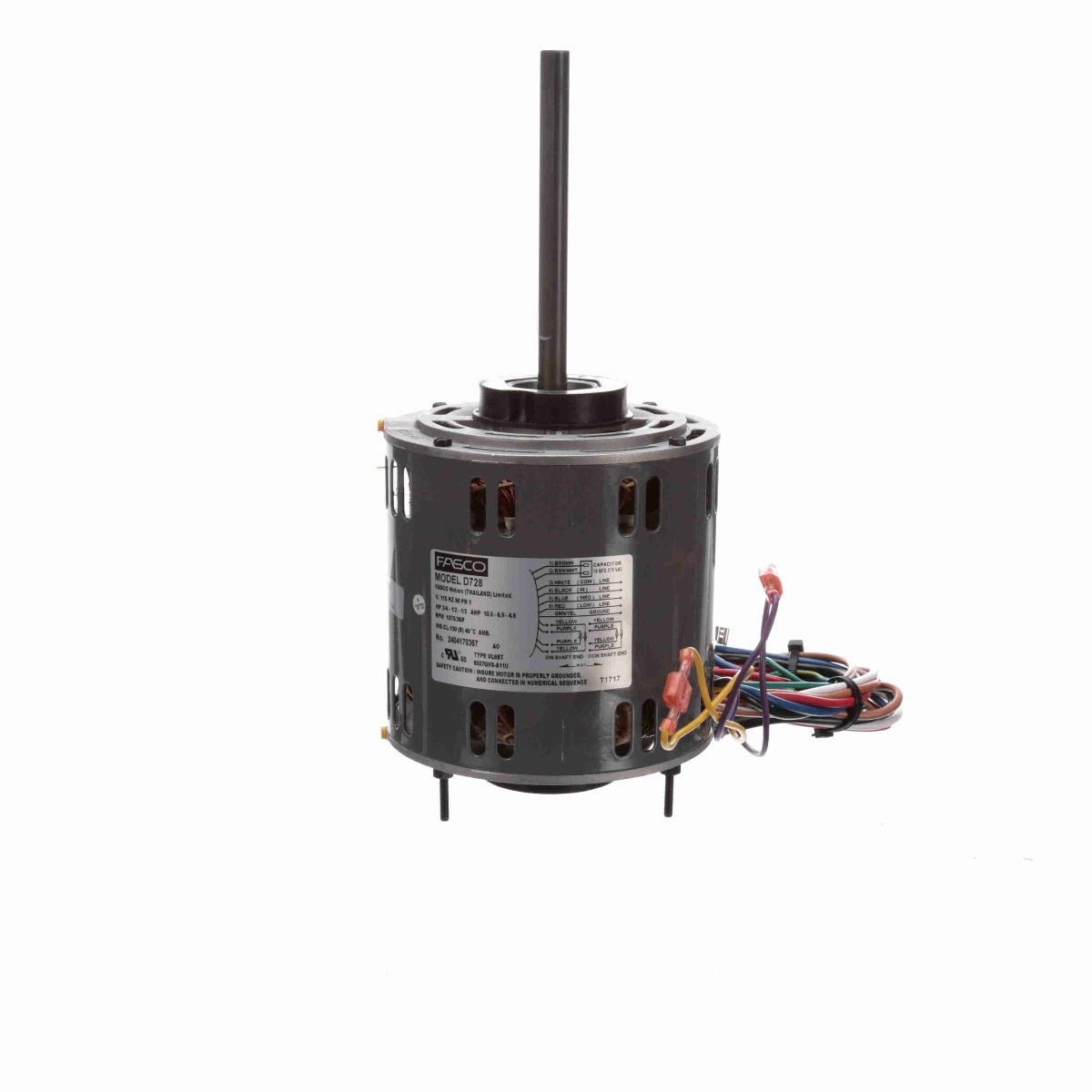

D728 Fasco Motor 3/4 HP, 1075 RPM, 115 V, 1 Phase, 3 Speed

* Image is for reference only

D728 Fasco Motor 3/4 HP, 1075 RPM, 115 V, 1 Phase, 3 Speed

SKU: D728
$172.10
Sale $172.10
Description
  • Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Studs Lead End, Resilient Ring Mounting, Belly Band
Specifications

Nameplate Specifications

Phase: 1 Output HP: 3/4-1/2-1/3 Hp
Output KW: 0.56 kW Voltage: 115 V
Speed: 1075 rpm Service Factor: 1
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 10.70 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 6
Rotation: Reversible Mounting: Resilient Rings
Motor Orientation: Any Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Double Flat Overall Length: 12.14 in
Frame Length: 4.82 in Shaft Diameter: 0.500 in
Shaft Extension: 5.75 in

General Specifications

UPC: 818508021270 Weight: 18.20 LB
Packaged Length: 14.12 IN Packaged Width: 6.38 IN
Packaged Height: 6.50 IN Country of Origin: India
