D703 Fasco Motor

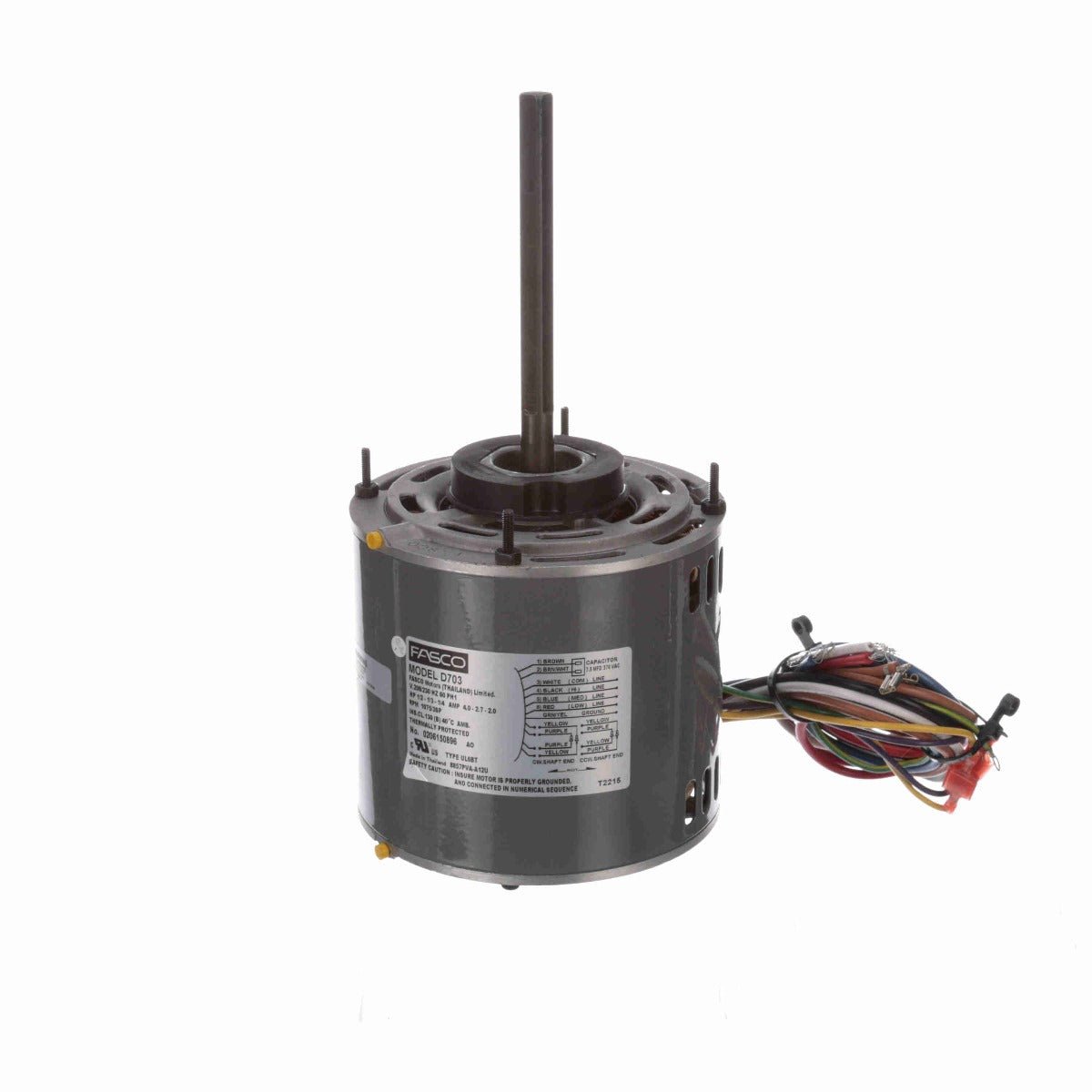

* Image is for reference only

D703 Fasco Motor 1/2-1/3-1/4HP 1075RPM 5.6" Open 208-230Volt 1 Phase REV

SKU: D703
$150.08
$224.00 Sale $150.08
  • Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Shaft End and Lead End, Shell Half Vented, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band
  • 4-2.7-2 AMPS
