D475 Fasco Fan Motor

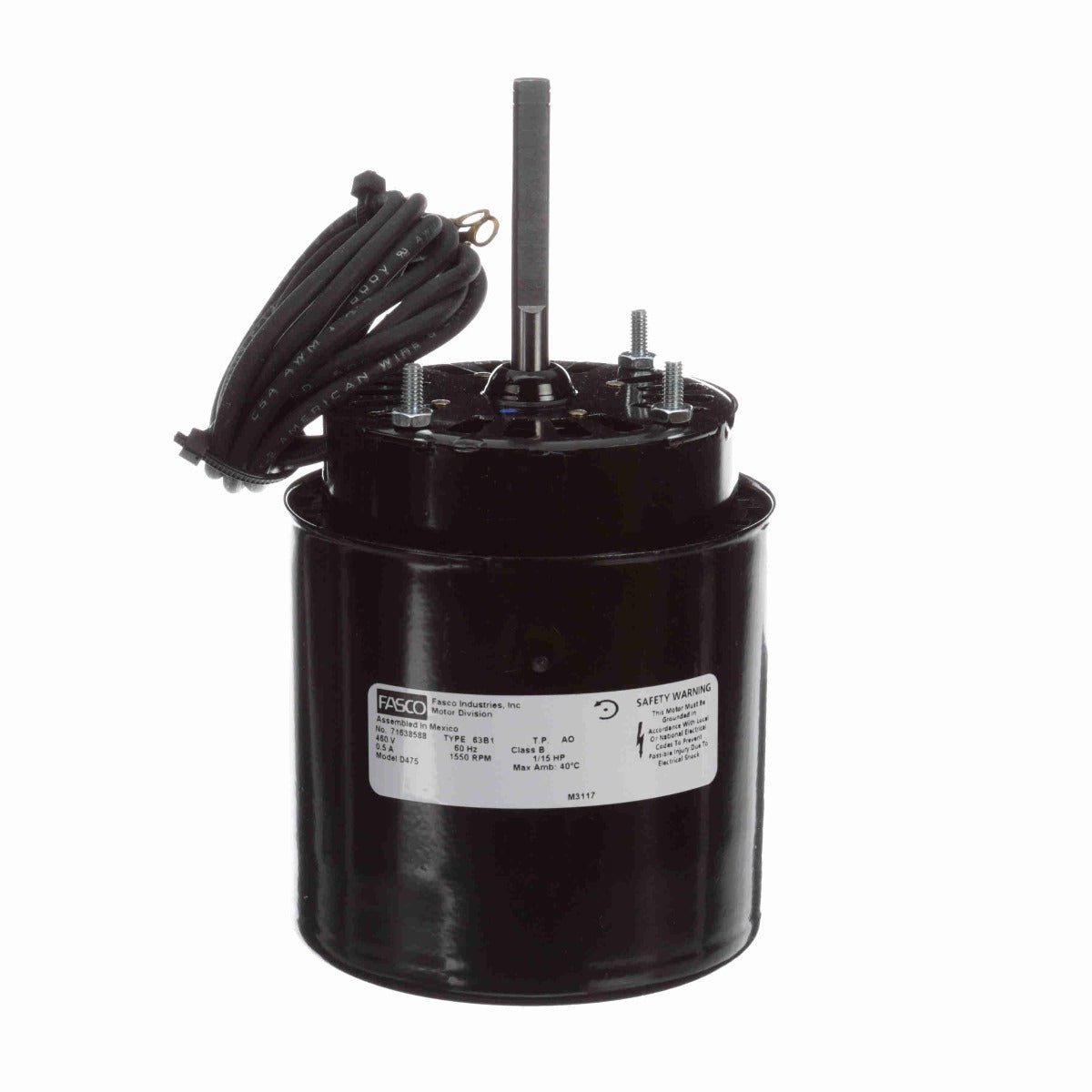

* Image is for reference only

D475 Fasco Fan Motor | 1/15HP 1550RPM 3.3" OPEN 460V Single Phase

SKU: D475
$211.57
Sale $211.57
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 33" Leads with Ring Terminal
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15 Hp
Output KW: 0.05 kW Voltage: 460 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.50 A
Duty: Air Over Insulation Class: B
UL: No CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat & Groove Overall Length: 7.04 in
Frame Length: 3.07 in Shaft Diameter: 0.313 in
Shaft Extension: 2.5 in

General Specifications

UPC: 818508020136 Weight: 5.20 LB
Packaged Length: 8.00 IN Packaged Width: 4.50 IN
Packaged Height: 4.50 IN Country of Origin: Mexico
