Home » D461 Fasco Motor 1/50 HP, 3000 RPM, 460 V, OEM, 1 Phase
D461 Fasco Motor 1/50 HP, 3000 RPM, 460 V, OEM, 1 Phase

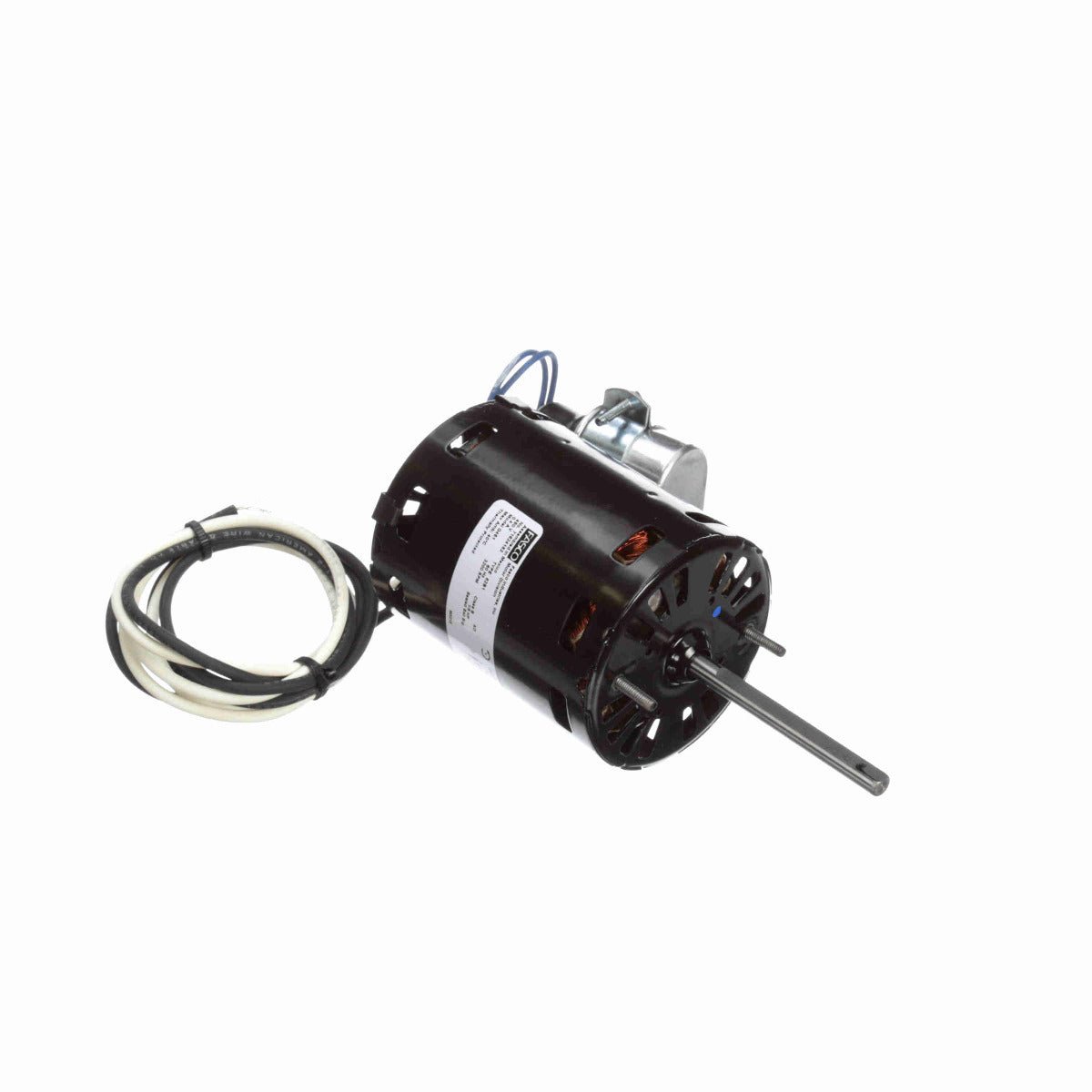

* Image is for reference only

D461 Fasco Motor 1/50 HP, 3000 RPM, 460 V, OEM, 1 Phase

SKU: D461
$336.44
Sale $336.44
Description
  • D461
    OEM NAME: REZNOR
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Permanent Split Capacitor (PSC); Capacitor Required: 2 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 36" Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/8 Hp
Output KW: 0.10 kW Voltage: 480 V
Speed: 3200 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .4 A
Duty: Air Over Insulation Class: B
UL: No CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 8.67 in
Frame Length: 4.02 in Shaft Diameter: 0.312 in
Shaft Extension: 3.25 in

General Specifications

UPC: 818508020051 Weight: 5.00 LB
Packaged Length: 11.00 IN Packaged Width: 5.50 IN
Packaged Height: 4.56 IN Country of Origin: Mexico
