D377 Fasco Motor 1/12 HP, 1500 RPM, 115 V, 1 Phase

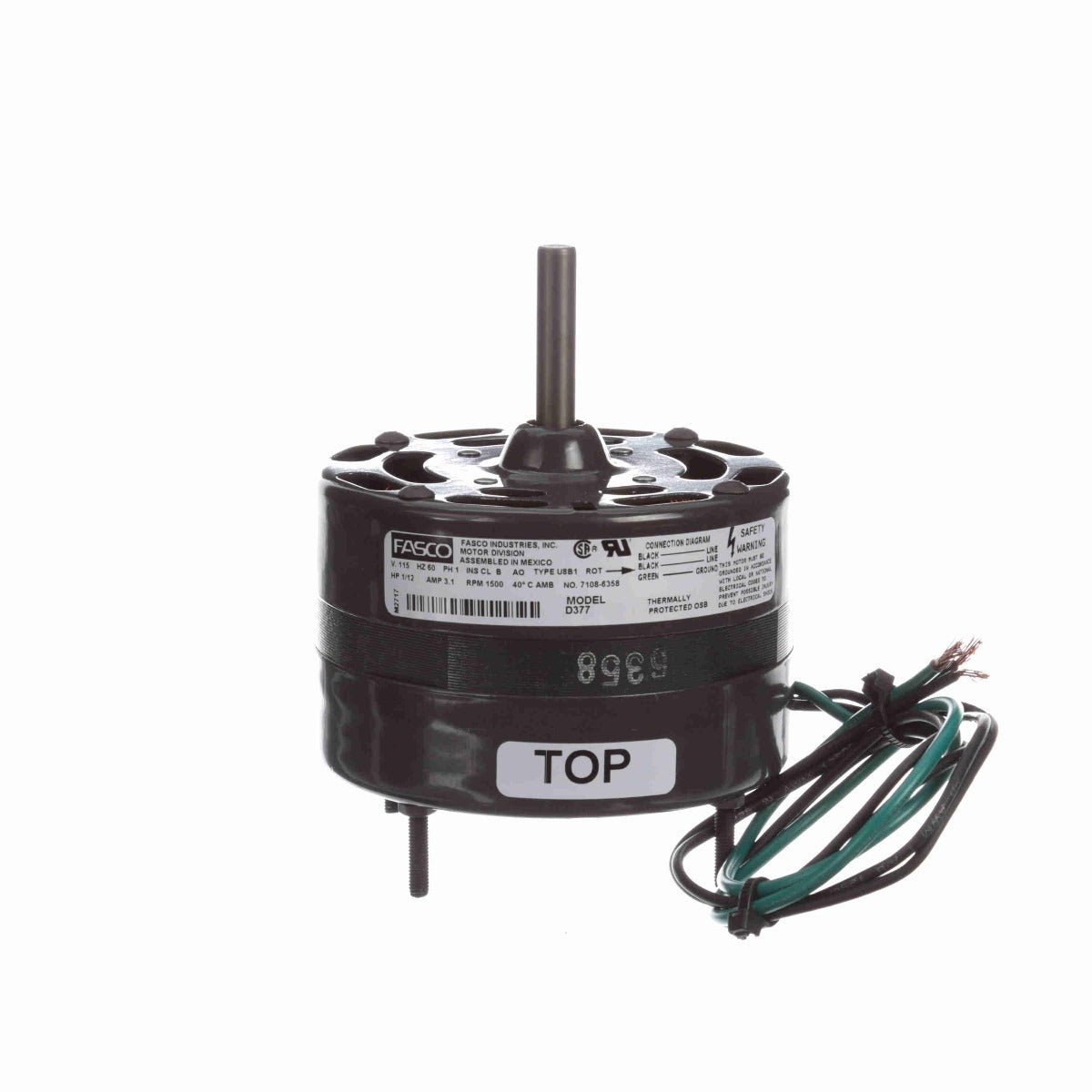

* Image is for reference only

D377 Fasco Motor 1/12 HP, 1500 RPM, 115 V, 1 Phase

SKU: D377
$230.33
Sale $230.33
Description
  • This item replaces Century 9485
  • OEM Direct Replacement Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Shaft with Flat
  • 20" Leads
  • Extended Studs Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/12 Hp
Output KW: 0.06 kW Voltage: 115 V
Speed: 1500 rpm Service Factor: 1
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 3.1 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 5.25 in
Shaft Diameter: 0.375 in Shaft Extension: 2.00 in

General Specifications

UPC: 815585029809 Weight: 4.40 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 10.00 IN Country of Origin: Mexico
