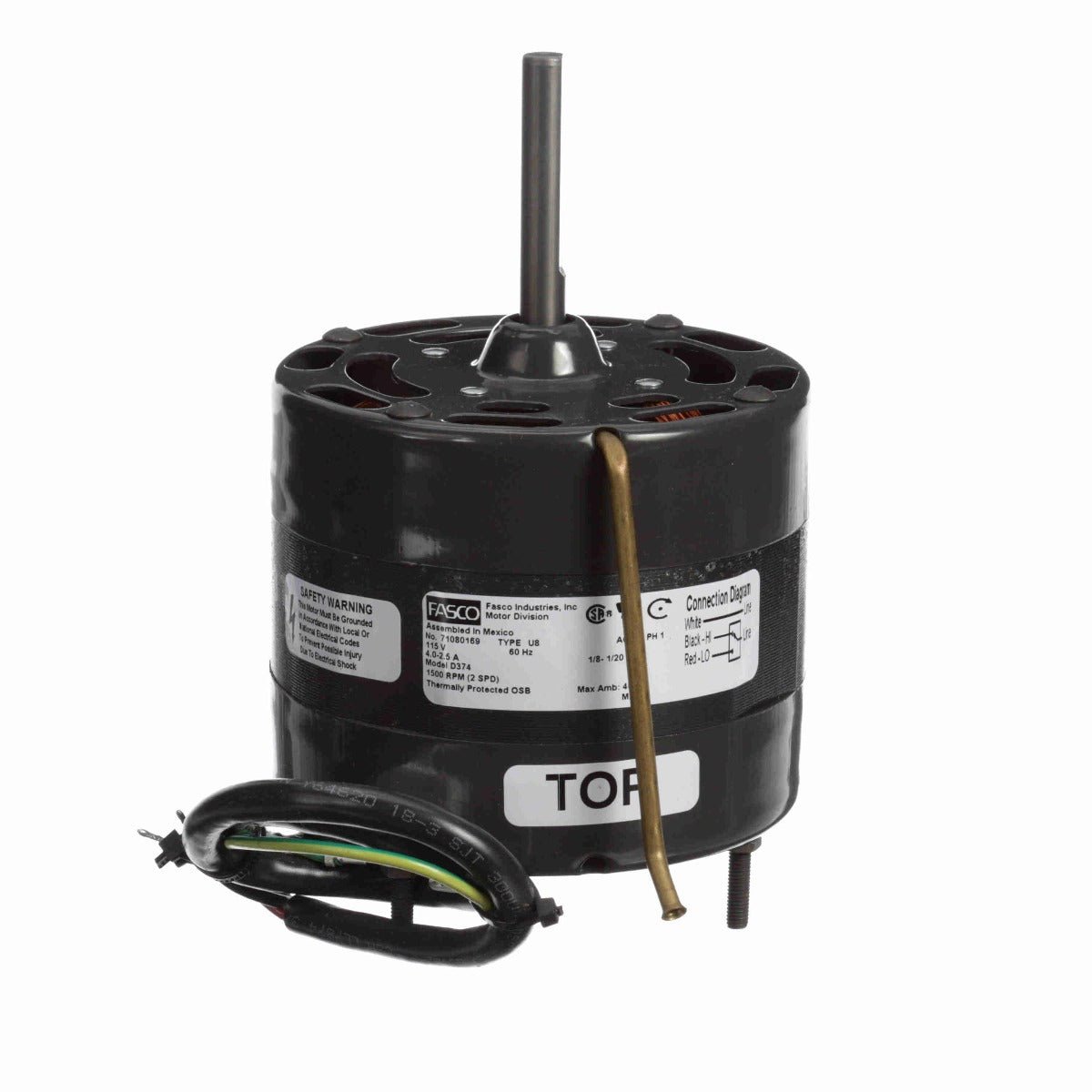

D374 Fasco Fan Motor

* Image is for reference only

D374 Fasco Fan Motor | 1/8HP 1500RPM 42 (5") OPEN 115V Single Phase

SKU: D374
$359.73
Sale $359.73
Description
  • General Purpose Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End, Enclosed Shell, Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Shaft with Flat
  • 17" Leads
  • Extended Studs Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/8-1/20 Hp
Output KW: 0.10 kW Voltage: 115 V
Speed: 1500 rpm Service Factor: 1
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 4.0-2.5 A
Duty: Air Over Insulation Class: A
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 6.62 in
Shaft Diameter: 0.313 in Shaft Extension: 2.2 in

General Specifications

UPC: 815585029793 Weight: 6.80 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 10.00 IN Country of Origin: Mexico
