Home » D339 Fasco Motor 1/8 HP, 1550 RPM, 230 V, 1 Phase

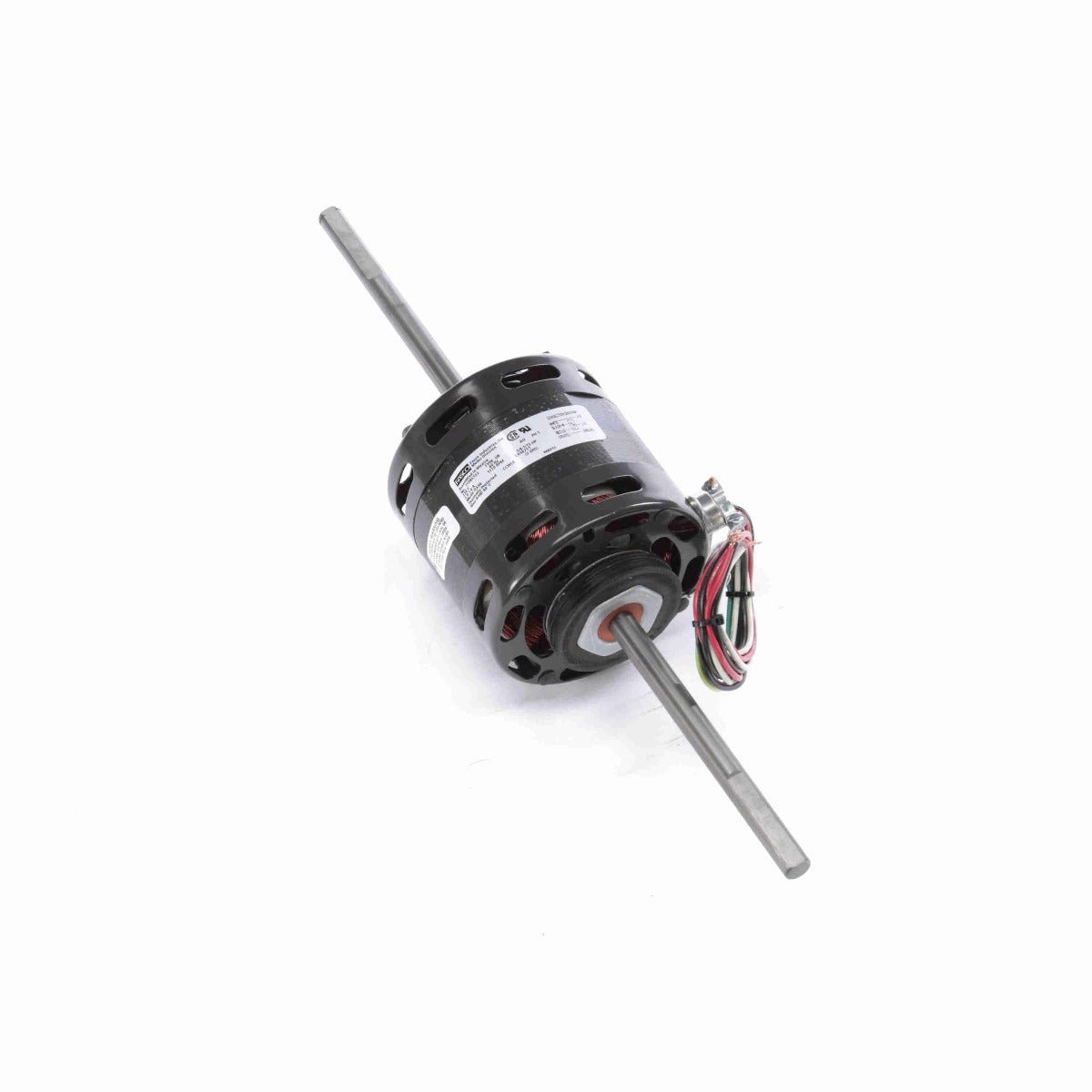

D339 Fasco Motor 1/8 HP, 1550 RPM, 230 V, 1 Phase

* Image is for reference only

D339 Fasco Motor 1/8 HP, 1550 RPM, 230 V, 1 Phase

SKU: D339
$302.15
Sale $302.15
Description
  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 30" Leads
  • Resilient Mounting Ring Lead End and Opposite Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/8-1/12 Hp
Output KW: 0.10 kW Voltage: 230 V
Speed: 1550 rpm Service Factor: 1
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.0-1.4 A
Duty: Air Over Insulation Class: A
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Resilient Rings Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 17.02 in
Shaft Diameter: 0.500 in Shaft Extension: 6.50 in

General Specifications

UPC: 815585029656 Weight: 9.80 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 20.00 IN Country of Origin: Mexico
