D335 Fasco Motor 1/20 HP, 1550 RPM, 115 V, 1 Phase

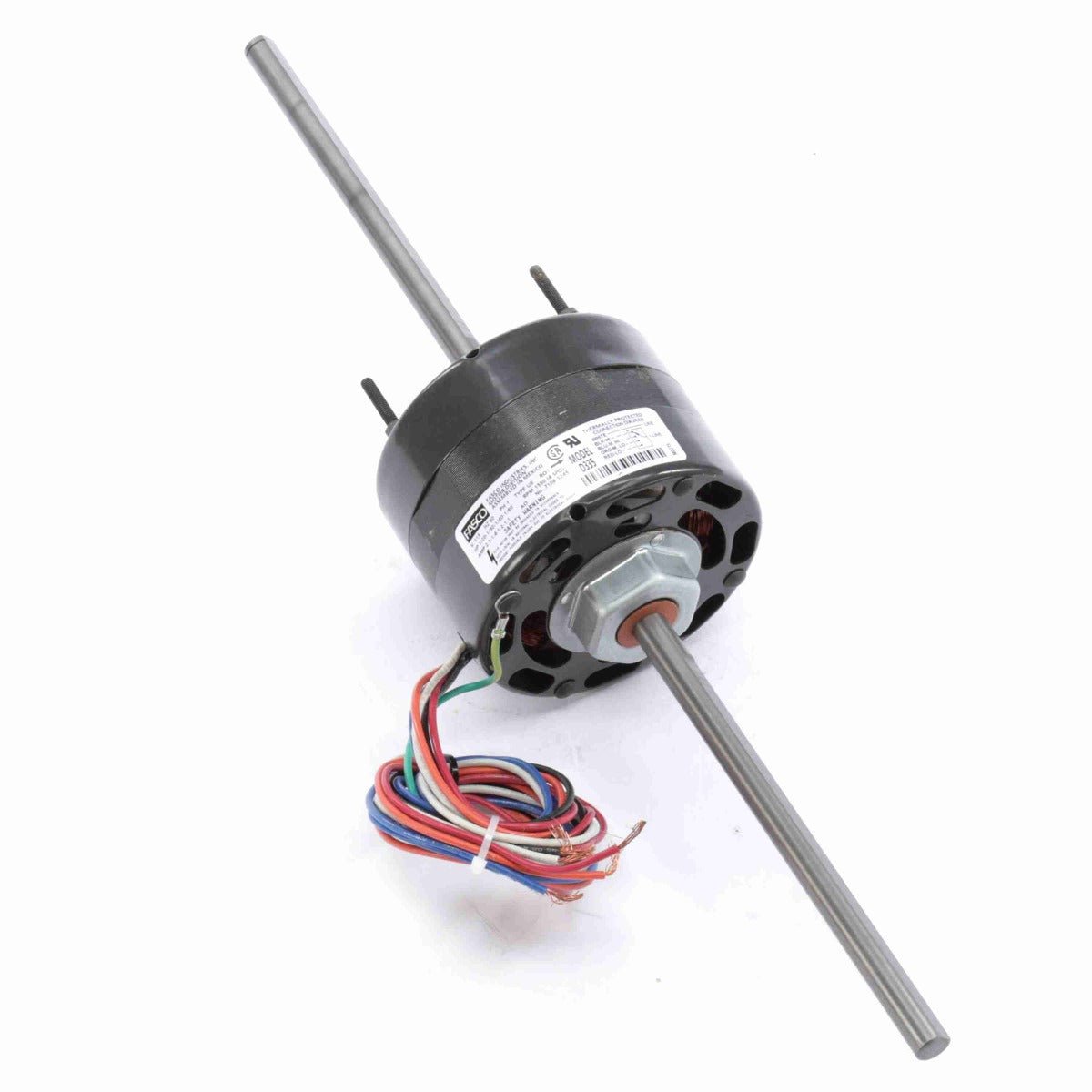

* Image is for reference only

D335 Fasco Motor 1/20 HP, 1550 RPM, 115 V, 1 Phase

SKU: D335
$243.92
Sale $243.92
Description
  • This item replaces Century 363 / 364
  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Lead End and Opposite Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 37" Leads
  • Extended Studs Opposite Lead End, Hex Mounting Hub Shaft End and Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20-1/30-1/40-1/60 Hp
Output KW: 0.04 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.1-1.4-1.2-1.1 A
Duty: Air Over Insulation Class: A
UL: Recognized CSA: Y
CE: N Number of Speeds: 4

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 19.22 in
Shaft Diameter: 0.500 in Shaft Extension: 8.00 in

General Specifications

UPC: 815585029618 Weight: 6.80 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 20.00 IN Country of Origin: Mexico
