Home » D2871 Fasco Motor 1 HP, 1100 RPM, 460 V, 1 Phase, 3 Speed

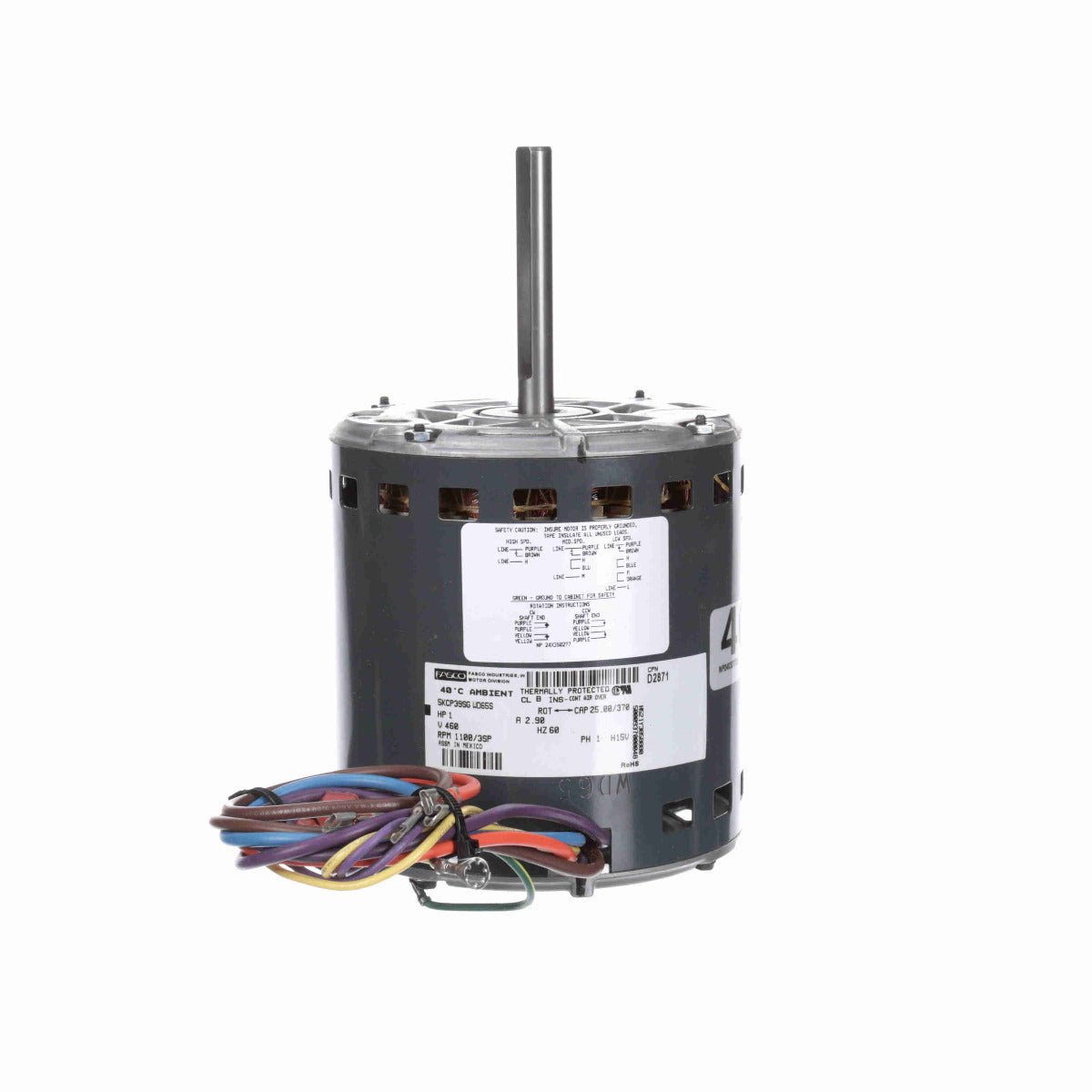

D2871 Fasco Motor 1 HP, 1100 RPM, 460 V, 1 Phase, 3 Speed

* Image is for reference only

D2871 Fasco Motor 1 HP, 1100 RPM, 460 V, 1 Phase, 3 Speed

SKU: D2871
$618.53
Sale $618.53
Description
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • Terminal Block
  • Clamp Screw Opposite Shaft End, Belly Band Mount
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 460 V
Speed: 1100 rpm Service Factor: 1
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.90 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 6
Rotation: Counterclockwise/Clockwise Mounting: Round
Motor Orientation: Any Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Double Flat Overall Length: 9.56 in
Frame Length: 5.32 in Shaft Diameter: 0.500 in
Shaft Extension: 3.50 in

General Specifications

UPC: 818508022420 Weight: 20.40 LB
Packaged Length: 14.12 IN Packaged Width: 6.38 IN
Packaged Height: 6.50 IN Country of Origin: Mexico
