D261 Fasco Motor 1/8 HP, 1075 RPM, 115 V, 1 Phase

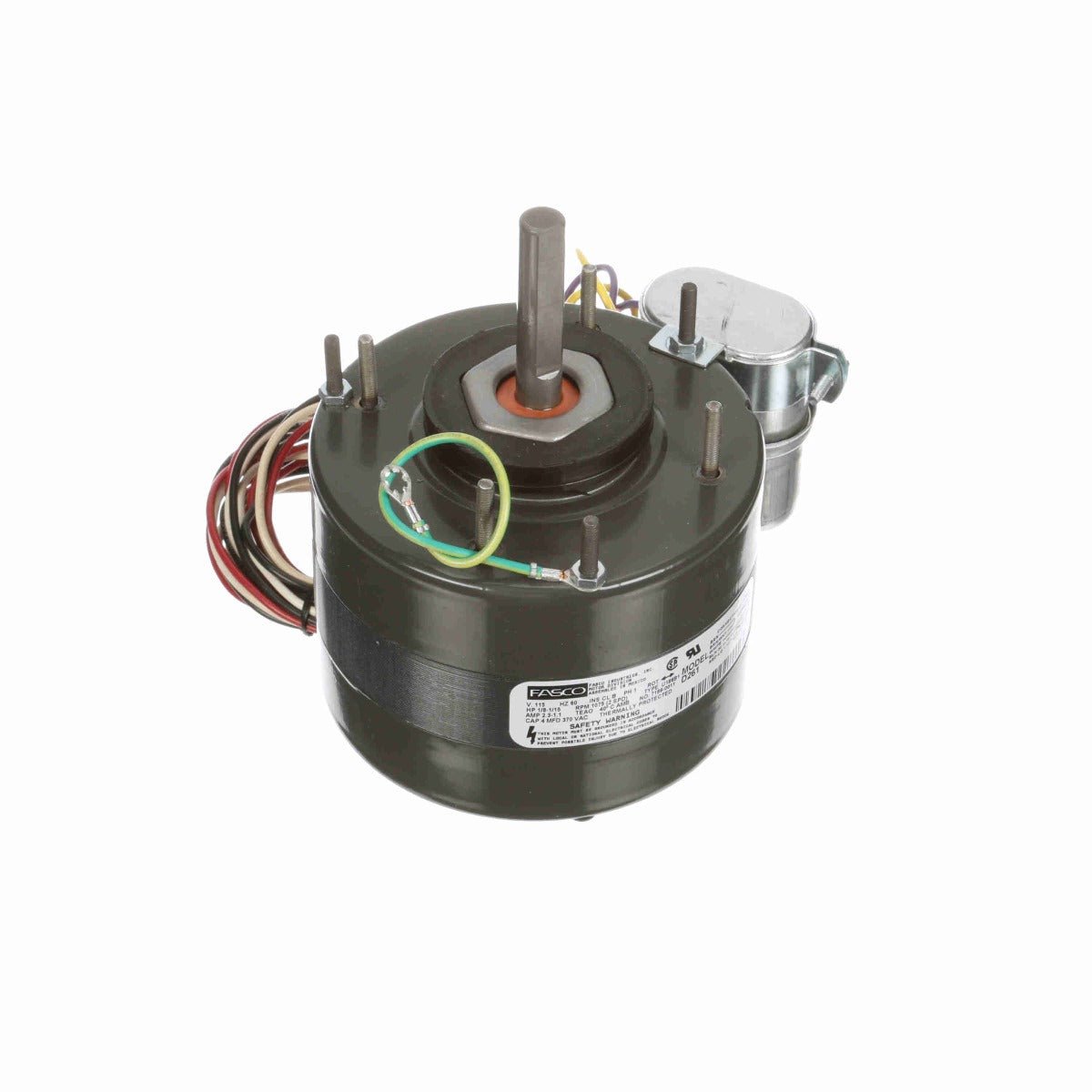

* Image is for reference only

D261 Fasco Motor 1/8 HP, 1075 RPM, 115 V, 1 Phase

SKU: D261
Description
  • Ventilation - Unit Heater Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 58" Leads with .5" Strip
  • Extended Studs Shaft End, Resilient Mounting Ring Shaft end and Lead End
