D227 Fasco Motor 1/20 HP, 1500 RPM, 115 V, 1 Phase

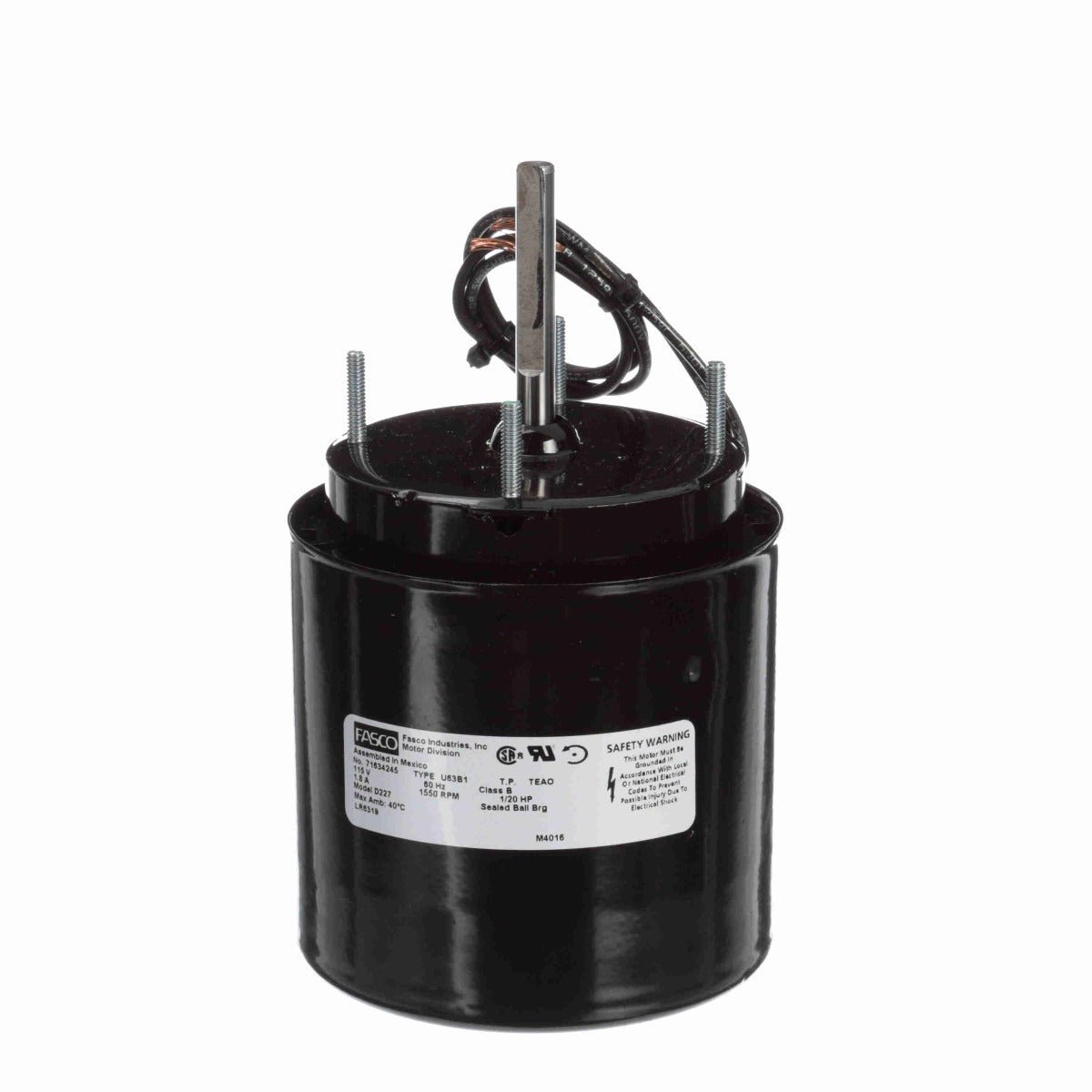

* Image is for reference only

D227 Fasco Motor 1/20 HP, 1500 RPM, 115 V, 1 Phase

SKU: D227
$214.16
Sale $214.16
Description
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 115 V
Speed: 1500 rpm Frame: 3.3
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.80 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 6.57 in
Frame Length: 2.82 in Shaft Diameter: 0.312 in
Shaft Extension: 2.30 in

General Specifications

UPC: 815585029137 Weight: 5.00 LB
Packaged Length: 8.00 IN Packaged Width: 4.50 IN
Packaged Height: 4.50 IN Country of Origin: Mexico
