D215 Fasco Motor 1/20 HP, 3000 RPM, 230 V, 1 Phase C 1.7-.8

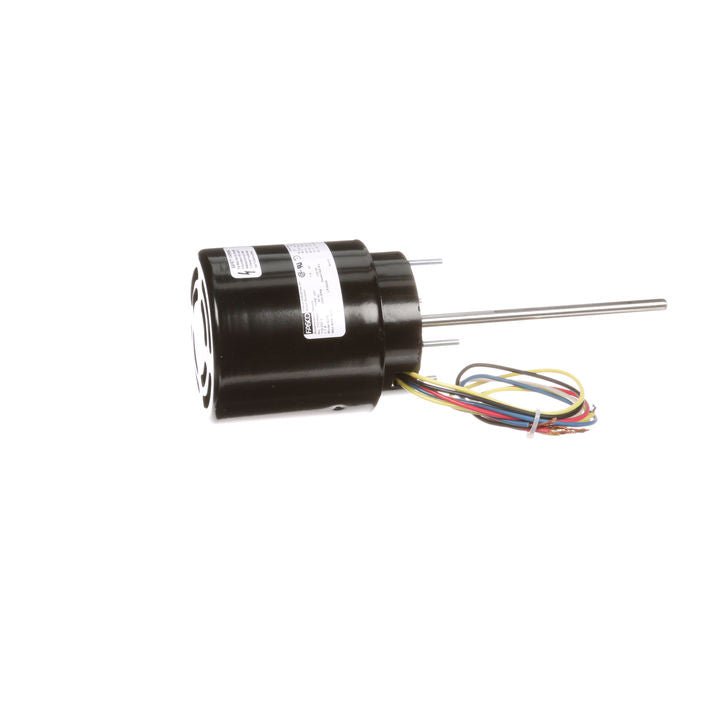

* Image is for reference only

D215 Fasco Motor 1/20 HP, 3000 RPM, 230 V, 1 Phase C 1.7-.8

SKU: D215
$224.51
Sale $224.51
Description
  • This item replaces Century 994
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 115/230 V
Speed: 3000 rpm Frame: 3.3
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: Thermally Protected
Efficiency: 35 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.7 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 11.23 in
Frame Length: 3.43 in Shaft Diameter: 0.312 in
Shaft Extension: 6.50 in

General Specifications

UPC: 815585029045 Weight: 5.20 LB
Packaged Length: 4.13 IN Packaged Width: 4.13 IN
Packaged Height: 12.63 IN Country of Origin: Mexico
