D214 Fasco Motor 1/20 HP, 3000 RPM, 230 V, 1 Phase 1.7-.8

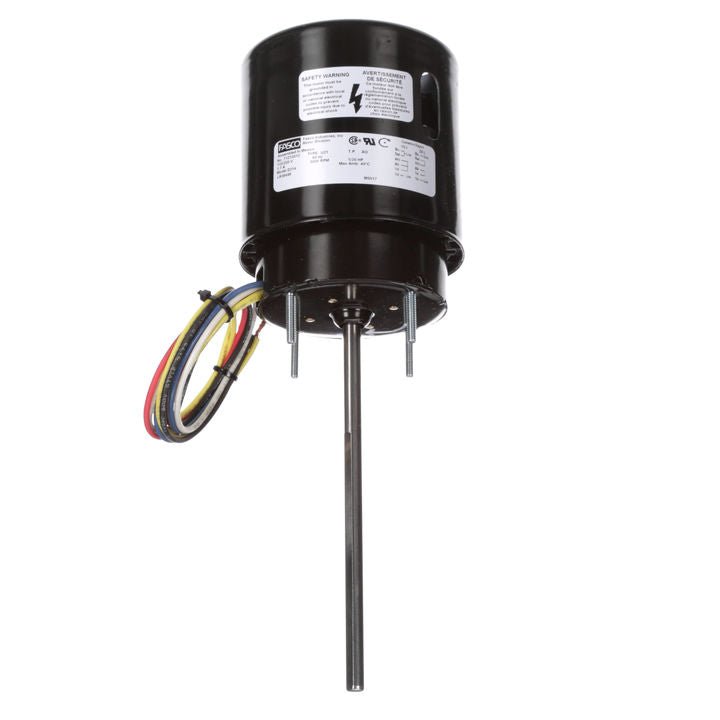

* Image is for reference only

D214 Fasco Motor 1/20 HP, 3000 RPM, 230 V, 1 Phase 1.7-.8

SKU: D214
$205.10
Sale $205.10
Description
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 115/230 V
Speed: 3000 rpm Service Factor: 1
Frame: 3.3 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Efficiency: 31 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.7 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 11.25 in
Frame Length: 3.43 in Shaft Diameter: 0.313 in
Shaft Extension: 6.50 in

General Specifications

UPC: 815585029038 Weight: 5.20 LB
Packaged Length: 4.13 IN Packaged Width: 4.13 IN
Packaged Height: 12.63 IN Country of Origin: Mexico
