D202 Fasco Motor 1/85 HP, 3000 RPM, 115 V, 1 Phase

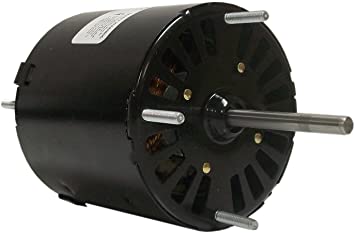

* Image is for reference only

D202 Fasco Motor 1/85 HP, 3000 RPM, 115 V, 1 Phase

SKU: D202
$91.23
Sale $91.23
Description

Each unit ships brand new from the factory and has a manufacturer's warranty.

  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/85 Hp
Output KW: 0.01 kW Voltage: 115 V
Speed: 3000 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .62 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Frame Length: 2.37 in
Shaft Diameter: 0.250 in Shaft Extension: 2.32 in

General Specifications

UPC: 815585028932 Weight: 2.05 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
