D184 Fasco Motor 1/25 HP, 1500 RPM, 115 V, 1 Phase

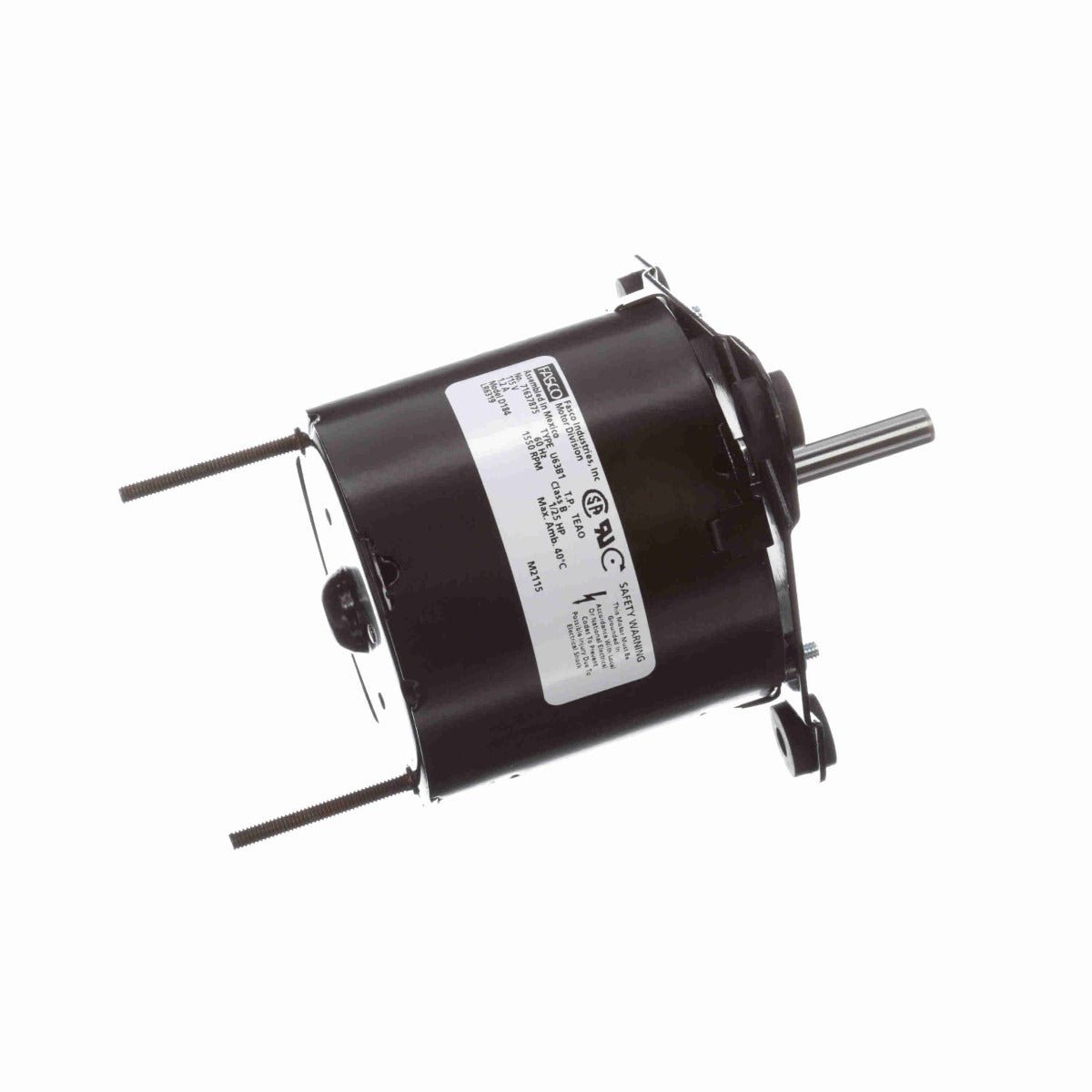

* Image is for reference only

D184 Fasco Motor 1/25 HP, 1500 RPM, 115 V, 1 Phase

SKU: D184
$137.16
Sale $137.16
Description
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • 1.2 AMPS
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • Conduit Box
  • Mounting Plate Shaft End, Extended Studs Opposite Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/25 Hp
Output KW: 0.03 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.20 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 4.94 in
Frame Length: 2.88 in Shaft Diameter: 0.313 in
Shaft Extension: 1.80 in

General Specifications

UPC: 815585028857 Weight: 4.60 LB
Packaged Length: 8.00 IN Packaged Width: 5.63 IN
Packaged Height: 5.00 IN Country of Origin: Mexico
