D138 Fasco Motor 1/25 HP, 1500 RPM, 115 V, 1 Phase

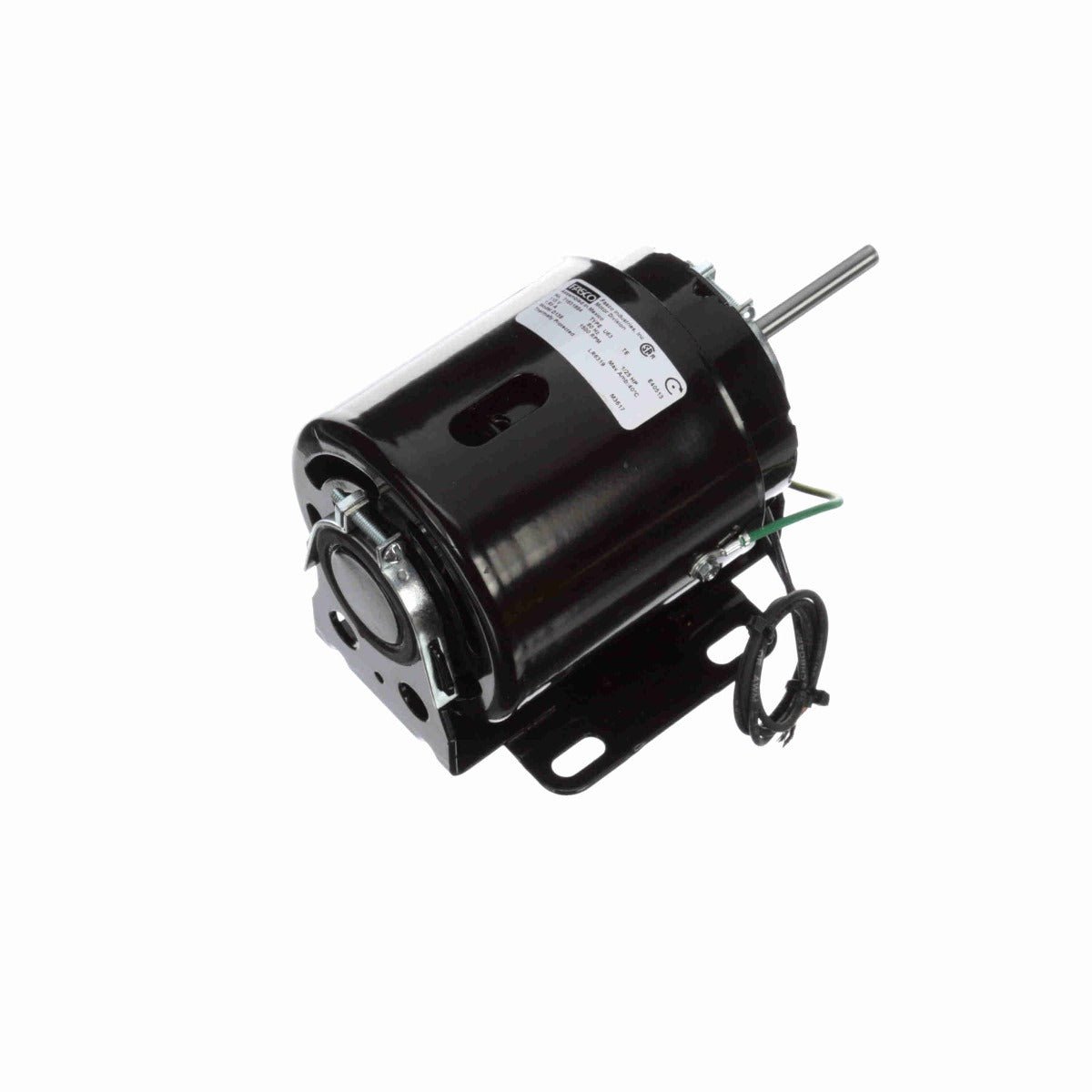

* Image is for reference only

D138 Fasco Motor 1/25 HP, 1500 RPM, 115 V, 1 Phase

SKU: D138
$208.98
Sale $208.98
Description
  • Fan & Blower Motor
  • 3.3" Diameter
  • 1.6 AMPS
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Fan Cooled
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Resilient Base
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/25 Hp
Output KW: 0.03 kW Voltage: 115 V
Speed: 1500 rpm Service Factor: 1
Frame: 3.3 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.65 A
Duty: Air Over Insulation Class: B
UL: No CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Resilient Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 7.63 in
Frame Length: 3.01 in Shaft Diameter: 0.313 in
Shaft Extension: 2.60 in

General Specifications

UPC: 815585028598 Weight: 5.40 LB
Packaged Length: 8.00 IN Packaged Width: 4.50 IN
Packaged Height: 4.50 IN Country of Origin: Mexico
