D134 Fasco Motor 1/25 HP, 1500 RPM, 115 V, 1 Phase

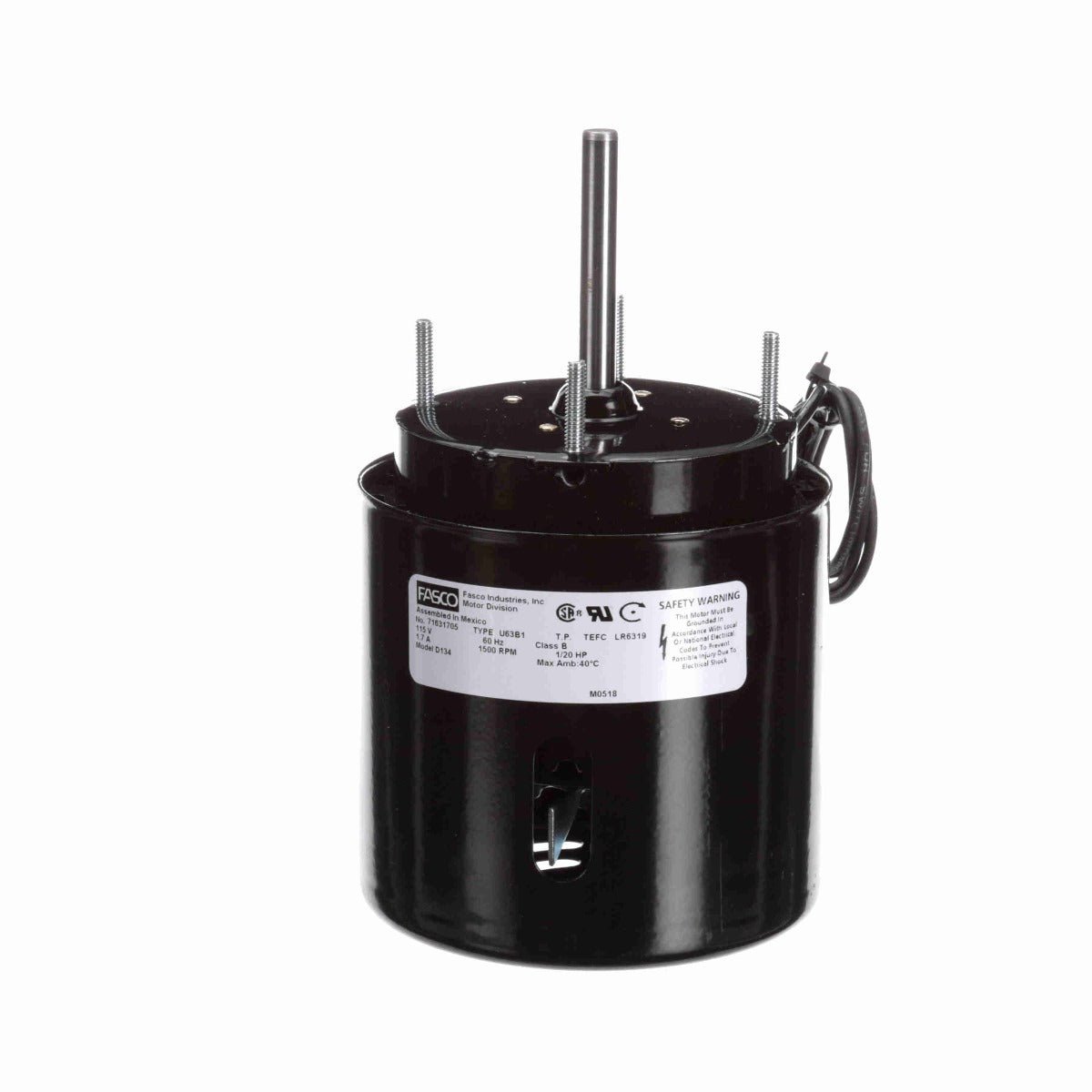

* Image is for reference only

D134 Fasco Motor 1/25 HP, 1500 RPM, 115 V, 1 Phase

SKU: D134
$160.46
Sale $160.46
Description
  • General Purpose Motor
  • 3.3" Diameter
  • 1.6 AMPS
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed, Fan Cooled
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 115 V
Speed: 1500 rpm Frame: 3.3
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: Thermally Protected
Efficiency: 30 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.70 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 6.64 in
Frame Length: 2.57 in Shaft Diameter: 0.313 in
Shaft Extension: 2.30 in

General Specifications

UPC: 815585028550 Weight: 4.40 LB
Packaged Length: 8.00 IN Packaged Width: 4.50 IN
Packaged Height: 4.50 IN Country of Origin: Mexico
