D127 Fasco Motor 1/40 HP, 1500 RPM, 115 V, 1 Phase

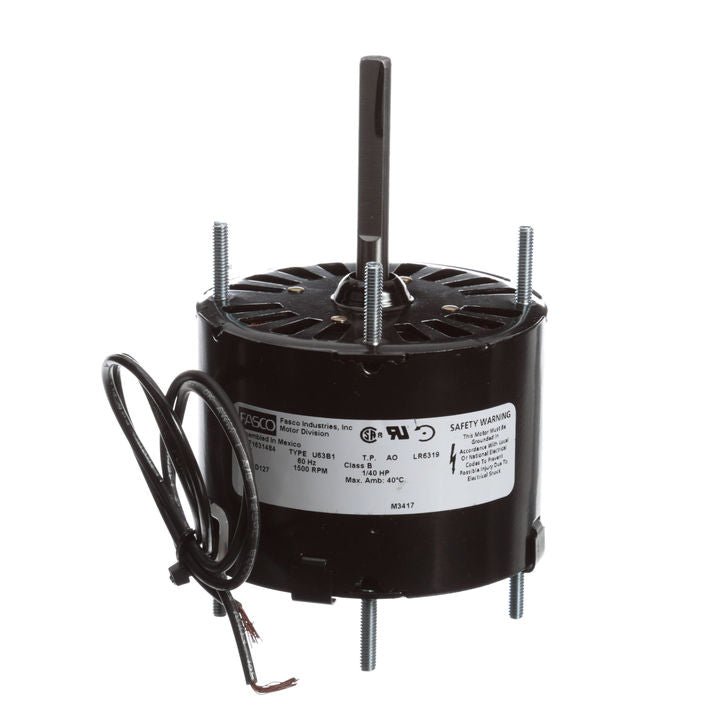

* Image is for reference only

D127 Fasco Motor 1/40 HP, 1500 RPM, 115 V, 1 Phase

SKU: D127
$82.82
Sale $82.82
Description
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End, Belly Band Mount
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/40 Hp
Output KW: 0.02 kW Voltage: 115 V
Speed: 1500 rpm Frame: 3.3
Enclosure: Open Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.00 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.08 in
Frame Length: 2.24 in Shaft Diameter: 0.313 in
Shaft Extension: 2.30 in

General Specifications

UPC: 815585028482 Weight: 2.80 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
