D1184 Fasco Motor 1/16 HP, 3450 RPM, 460 V, 1 Phase

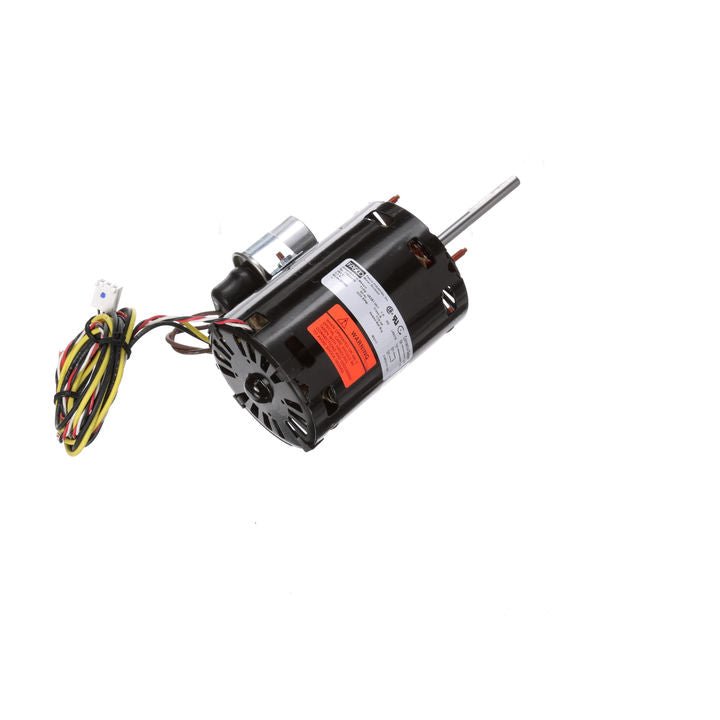

* Image is for reference only

D1184 Fasco Motor 1/16 HP, 3450 RPM, 460 V, 1 Phase

SKU: D1184
$281.45
Sale $281.45
Description
  • Draft Inducer Motor
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End End-Frame and Lead End End-Frame, Open Lead End Shell and Enclosed Shaft End Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Double Flat
  • 56" Leads with Spade Terminals
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/16 Hp
Output KW: 0.04 kW Voltage: 460 V
Speed: 3450 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .3 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Double Flat Overall Length: 8.10 in
Frame Length: 4.51 in Shaft Diameter: 0.312 in
Shaft Extension: 3.35 in

General Specifications

UPC: 815585028048 Weight: 5.00 LB
Packaged Length: 12.00 IN Packaged Width: 5.13 IN
Packaged Height: 3.31 IN Country of Origin: Mexico
