D1182 Fasco Motor 1/16 HP, 3450 RPM, 115 V, OEM, 1 Phase

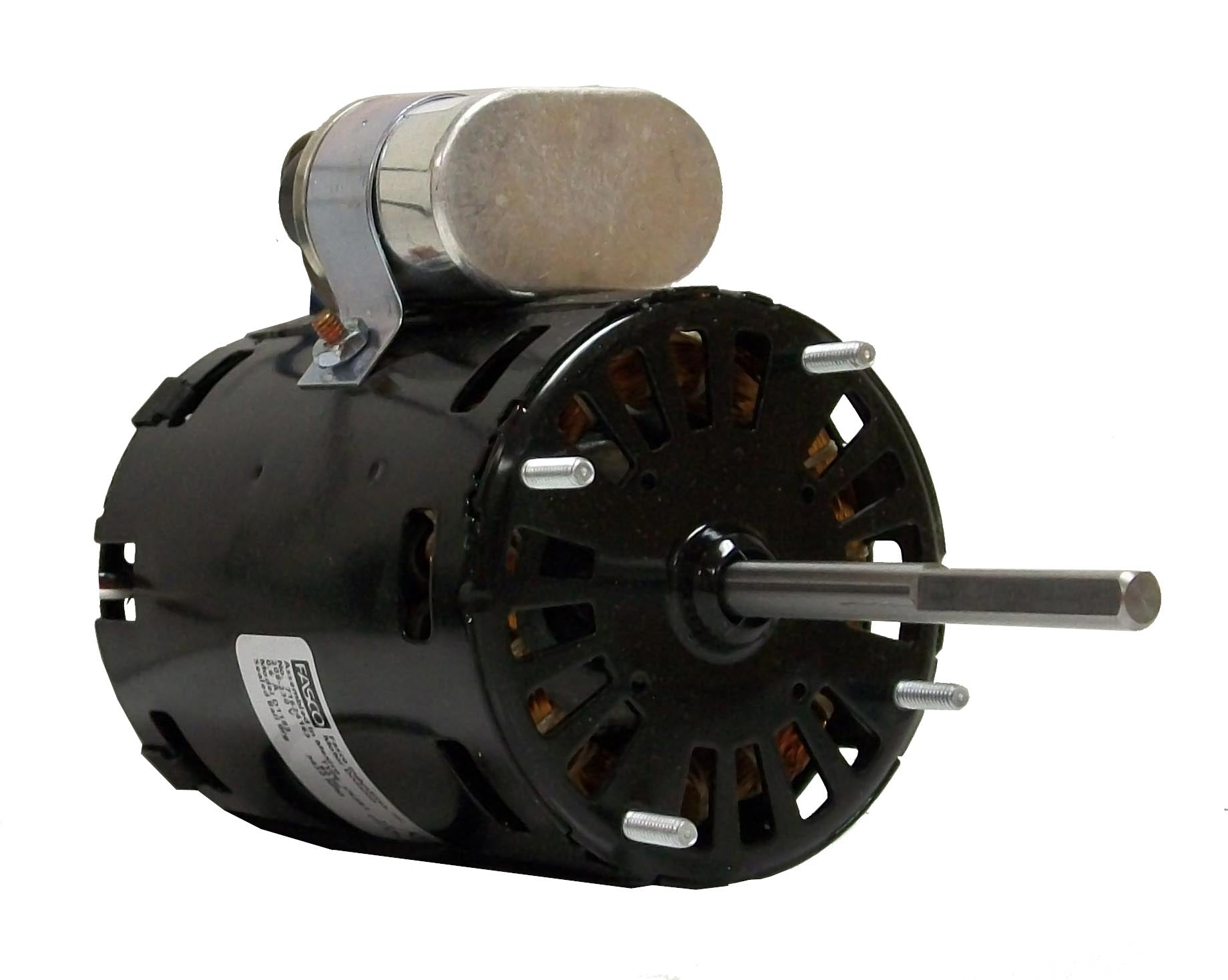

* Image is for reference only

D1182 Fasco Motor 1/16 HP, 3450 RPM, 115 V, OEM, 1 Phase

SKU: D1182
$273.03
Sale $273.03
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Double Flat
  • 52" Leads with Terminal Housing
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/16 Hp
Output KW: 0.04 kW Voltage: 208-230 V
Speed: 3450 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .6 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Double Flat Overall Length: 8.16 in
Frame Length: 4.33 in Shaft Diameter: 0.312 in
Shaft Extension: 3.35 in

General Specifications

UPC: 815585028031 Weight: 4.40 LB
Packaged Length: 12.00 IN Packaged Width: 5.13 IN
Packaged Height: 3.31 IN Country of Origin: Mexico
