Home » D1178 Fasco Motor 1/15HP 3450RPM 3.3 Open 208-230V CW OEM 1 Phase
D1178 Fasco Motor 1/15HP 3450RPM 3.3 Open 208 - 230V CW OEM 1 Phase - Square One Electric Motors & Pumps

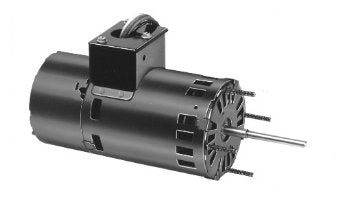

* Image is for reference only

D1178 Fasco Motor 1/15HP 3450RPM 3.3 Open 208-230V CW OEM 1 Phase

SKU: D1178
$237.85
Sale $237.85
Description
  • D1178
    OEM NAME: CARRIER
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Shaft End End-Frame and Shell, Enclosed Opposite Shaft End End-Frame, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16"  Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End
