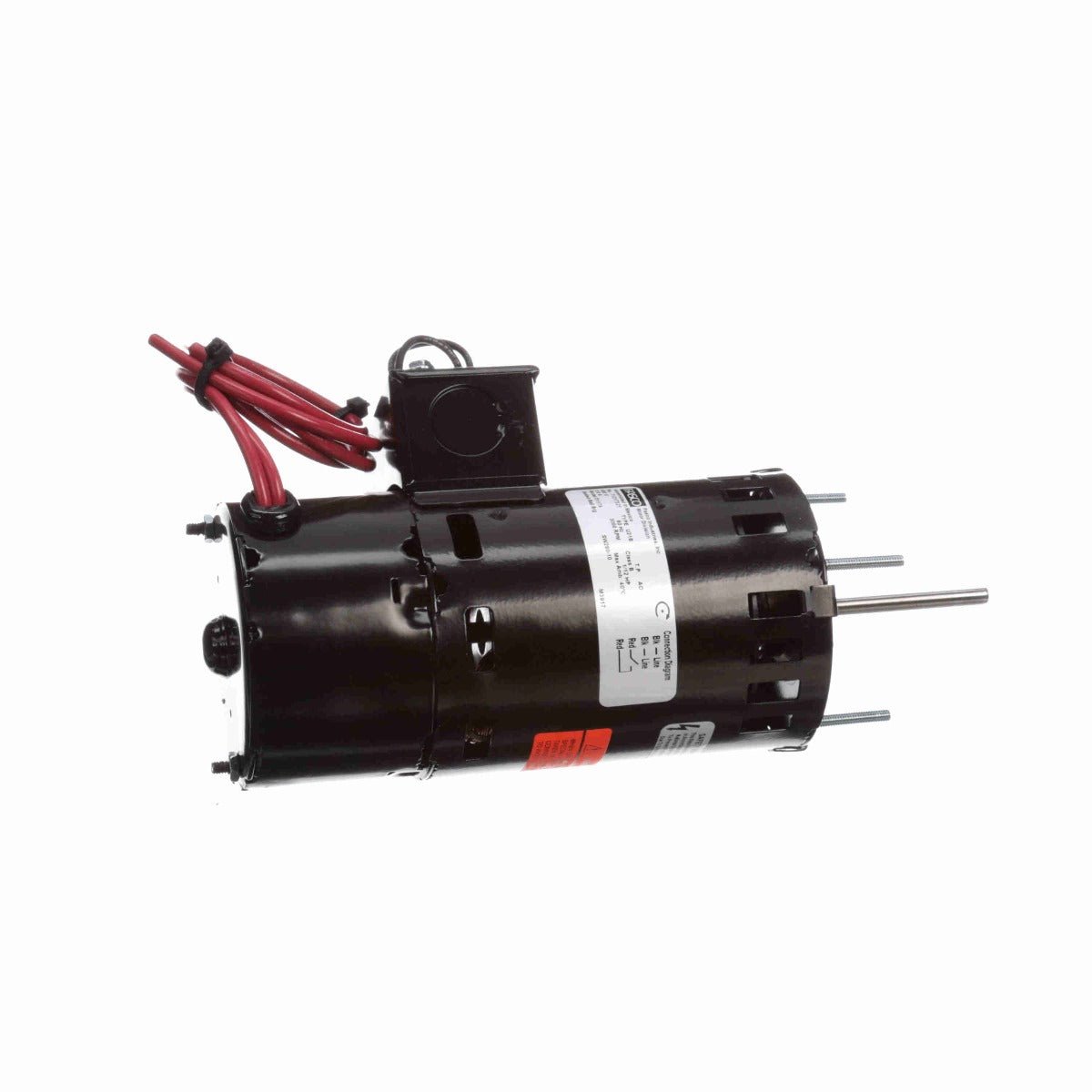

D1174 Fasco Motor, 3000 RPM, 460 V, 1 Phase

* Image is for reference only

D1174 Fasco Motor, 3000 RPM, 460 V, 1 Phase

SKU: D1174
$259.45
Sale $259.45
Description
 D1174
OEM NAME: CARRIER
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/4" Diameter Shaft with Flat
  • Conduit Box, 15" Switch Leads
  • Mounting Plate Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/12 Hp
Output KW: 0.06 kW Voltage: 460 V
Speed: 3000 rpm Frame: 3.3
Enclosure: Open Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 0.60 A Duty: Air Over
Insulation Class: B UL: No
CSA: N CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 9.69 in
Frame Length: 4.52 in Shaft Diameter: 0.250 in
Shaft Extension: 2.5 in

General Specifications

UPC: 815585027973 Weight: 5.20 LB
Packaged Length: 11.38 IN Packaged Width: 6.50 IN
Packaged Height: 4.25 IN Country of Origin: Mexico
