D1170 Fasco Fan Motor

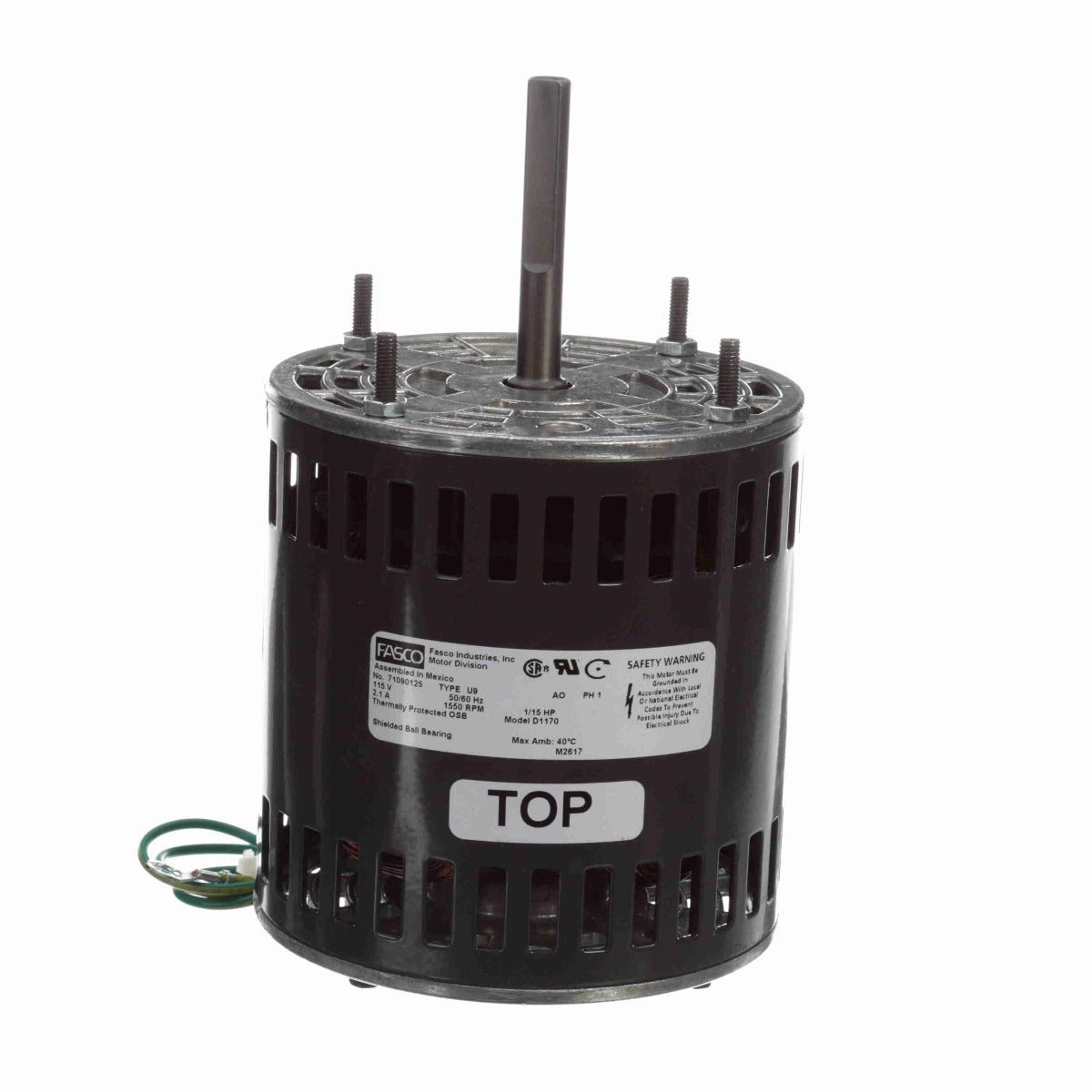

* Image is for reference only

D1170 Fasco Fan Motor | 1/15HP 1500RPM 3.3" OPEN 115V Single Phase

SKU: D1170
$390.14
Sale $390.14
Description
  • This item replaces Century 394
  • OEM Direct Replacement Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • Conduit Box, 13" Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15 Hp
Output KW: 0.05 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.1 A
Duty: Air Over Insulation Class: A
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 7.24 in
Frame Length: 4.38 in Shaft Diameter: 0.375 in
Shaft Extension: 2.50 in

General Specifications

UPC: 818508022307 Weight: 7.00 LB
Packaged Length: 5.75 IN Packaged Width: 4.38 IN
Packaged Height: 8.00 IN Country of Origin: Mexico
