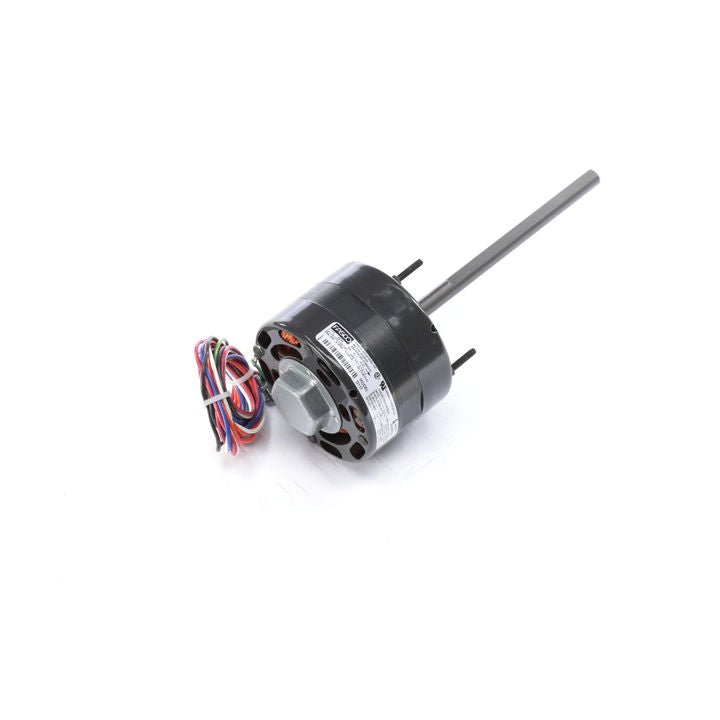

D117 Fasco Fan Motor

* Image is for reference only

D117 Fasco Fan Motor | 1/15HP 1550RPM 42 (5") OPEN 115V Single Phase

SKU: D117
$272.39
Sale $272.39
Description
  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 31" Leads
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15-1/25-1/30-1/40 Hp
Output KW: 0.05 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.5-1.5-1.2-1.0 A
Duty: Air Over Insulation Class: A
UL: Recognized CSA: Y
CE: N Number of Speeds: 4

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 11.29 in
Shaft Diameter: 0.500 in Shaft Extension: 7.5 in

General Specifications

UPC: 818508022291 Weight: 6.20 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 20.00 IN Country of Origin: Mexico
