D1164 Fasco Motor 1/25 HP, 1550 RPM, 115/230 V, 1 Phase

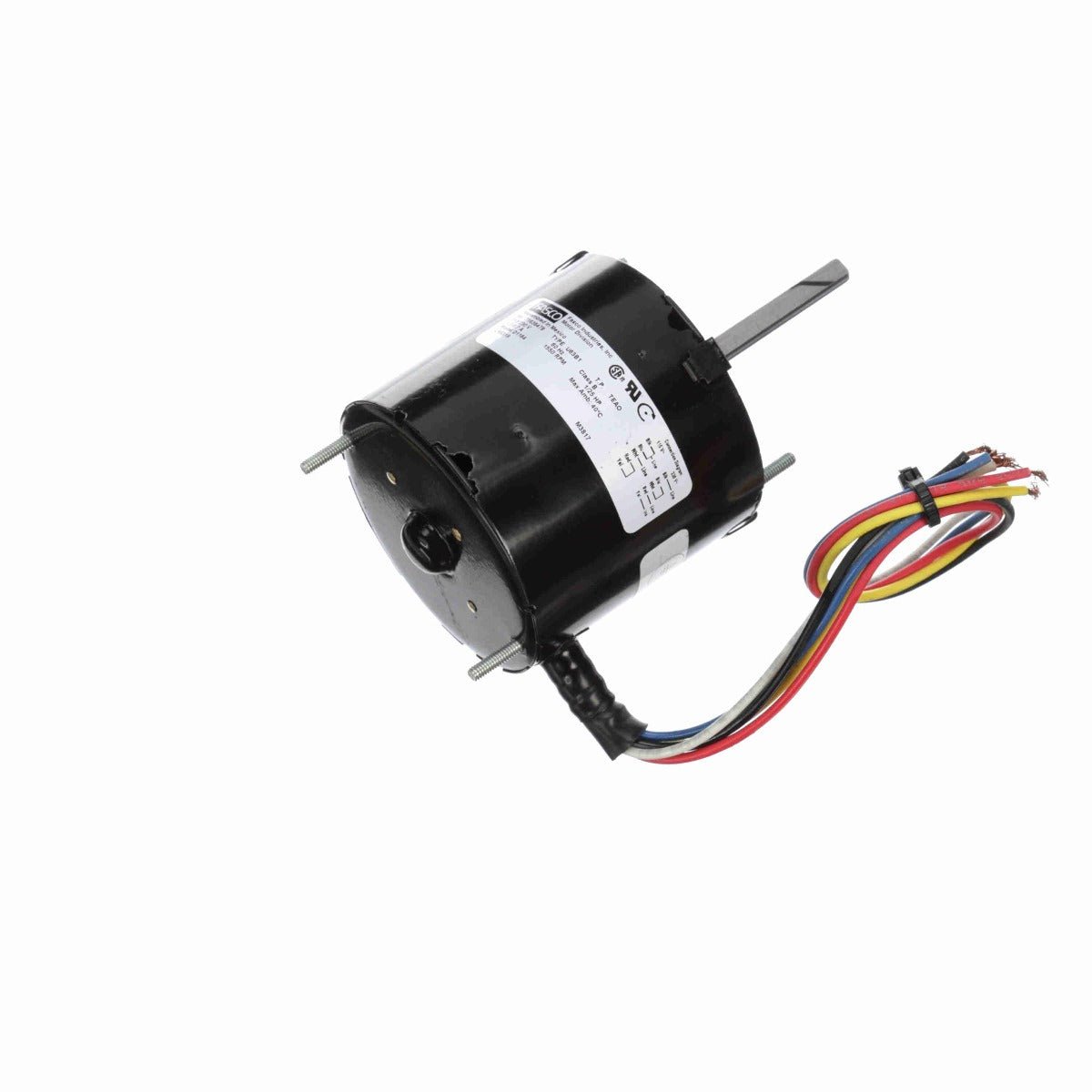

* Image is for reference only

D1164 Fasco Motor 1/25 HP, 1550 RPM, 115/230 V, 1 Phase

SKU: D1164
$140.40
Sale $140.40
Description

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/25 Hp
Output KW: 0.03 kW Voltage: 115/230 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Efficiency: 35 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.30/0.70 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 6.00 in
Frame Length: 2.95 in Shaft Diameter: 0.313 in
Shaft Extension: 2.5 in

General Specifications

UPC: 818508022253 Weight: 4.00 LB
Packaged Length: 8.00 IN Packaged Width: 4.50 IN
Packaged Height: 4.50 IN Country of Origin: Mexico
