D1158 Fasco Motor 1/20 HP, 1550 RPM, 115/208-230 V, 1 Phase

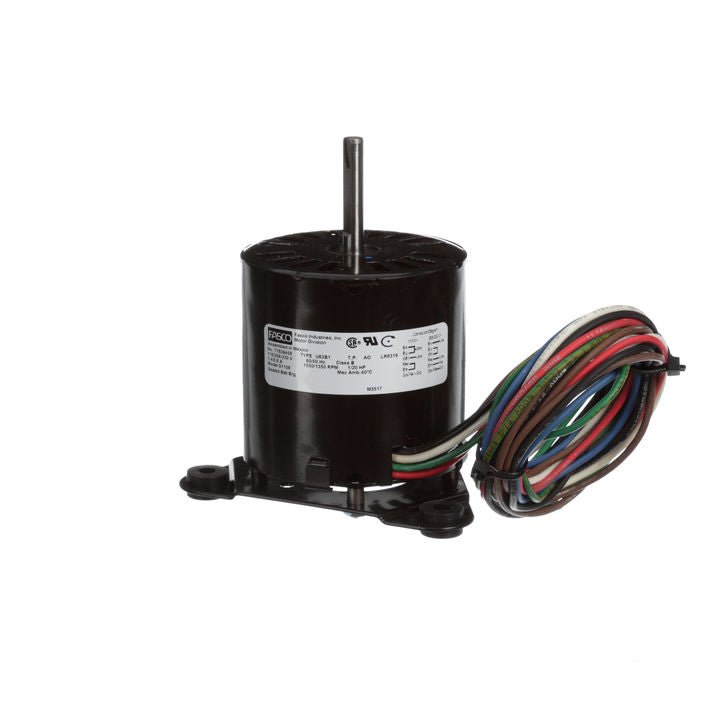

* Image is for reference only

D1158 Fasco Motor 1/20 HP, 1550 RPM, 115/208-230 V, 1 Phase

SKU: D1158
$154.63
Sale $154.63
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 40" Leads
  • Mounting Plate Opposite Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 115/208-230 V
Speed: 1550/1350 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.40/0.80 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Lug Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 5.30 in
Frame Length: 2.95 in Shaft Diameter: 0.312 in
Shaft Extension: 1.65 in

General Specifications

UPC: 818508022192 Weight: 4.40 LB
Packaged Length: 10.50 IN Packaged Width: 5.38 IN
Packaged Height: 4.38 IN Country of Origin: Mexico
