D1141 Fasco Motor 1/15 HP, 1000 RPM, 115 V, OEM, 1 Phase

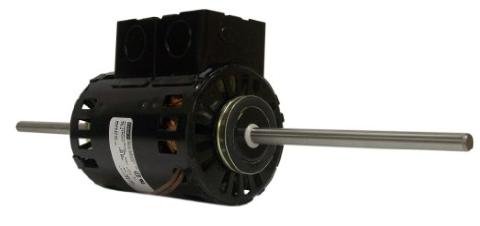

* Image is for reference only

D1141 Fasco Motor 1/15 HP, 1000 RPM, 115 V, OEM, 1 Phase

SKU: D1141
$308.62
Sale $308.62
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Double Shaft with Flat
  • 8" Leads
  • Resilient Ring Mounting
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15-1/25-1/35 Hp
Output KW: 0.05 kW Voltage: 115 V
Speed: 1000 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.70/1.30/1.00 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Resilient Rings Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 16.05 in
Frame Length: 4.51 in Shaft Diameter: 0.375 in
Shaft Extension: 5.62 in

General Specifications

UPC: 818508022079 Weight: 6.20 LB
Packaged Length: 17.00 IN Packaged Width: 4.50 IN
Packaged Height: 3.31 IN Country of Origin: Mexico
