D1126 Fasco Motor 1/15 HP, 1550 RPM, 230 V, 1 Phase

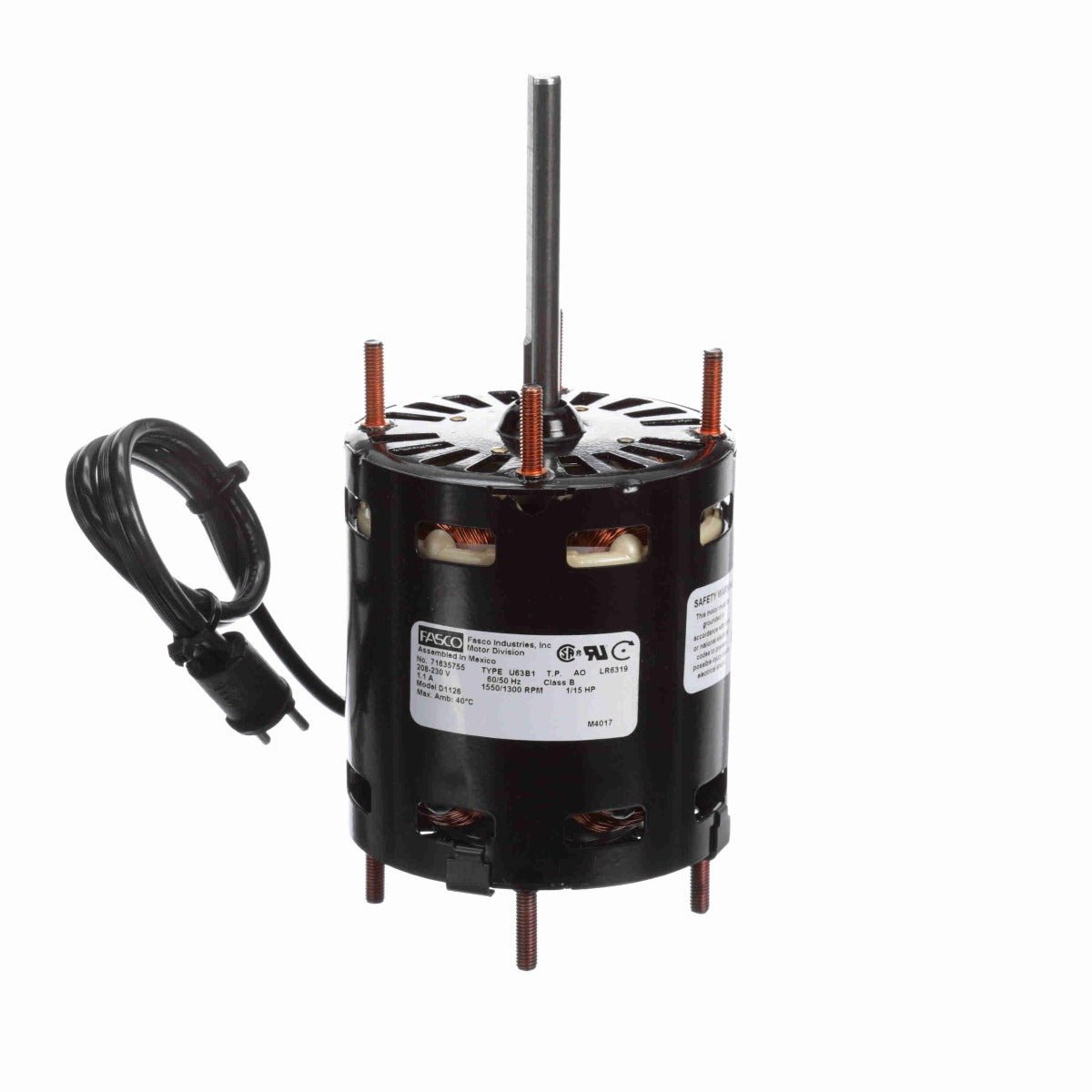

* Image is for reference only

D1126 Fasco Motor 1/15 HP, 1550 RPM, 230 V, 1 Phase

SKU: D1126
$105.00
Sale $105.00
Description

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 13" Leads with Molded Plug
  • Extended Studs Shaft End and Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15 Hp
Output KW: 0.05 kW Voltage: 208-230 V
Speed: 1550/1300 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.10 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 6.92 in
Frame Length: 3.37 in Shaft Diameter: 0.313 in
Shaft Extension: 3 in

General Specifications

UPC: 818508021928 Weight: 5.00 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
