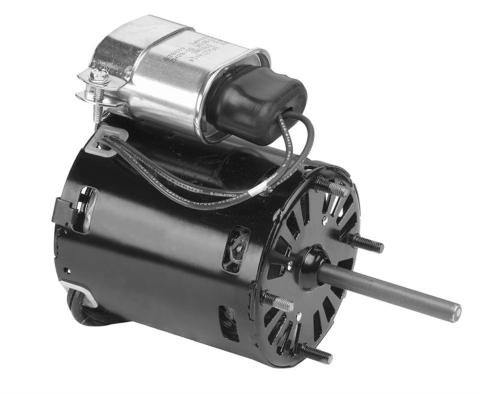

D1123 Fasco Motor 1/15 HP, 1550 RPM, 208-230 V, 1 Phase
SKU:
D1123
Regular price
$155.28
Regular price
Sale
Sale price
$155.28
- Description
- Specifications
Description
- iMotor™ - Refrigeration Motor
- Unit Bearing
- Electronically Commutated (ECM)
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 5/16" Diameter Shaft with Flat
- 16" Leads with Molded Plug
- Extended Studs Shaft End
Specifications
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/20-1/15 Hp |
| Output KW: | 0.04 kW | Voltage: | 208-230 V |
| Speed: | 1400/1550 rpm | Service Factor: | 1 |
| Frame: | 3.3 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 50 Hz | Current: | 0.40/0.50 A |
| Duty: | Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Counterclockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
| Shaft Type: | Flat | Overall Length: | 6.70 in |
| Frame Length: | 3.57 in | Shaft Diameter: | 0.313 in |
| Shaft Extension: | 2.64 in |
General Specifications
| UPC: | 815585028413 | Weight: | 4.40 LB |
| Packaged Length: | 8.00 IN | Packaged Width: | 5.63 IN |
| Packaged Height: | 5.00 IN | Country of Origin: | Mexico |
