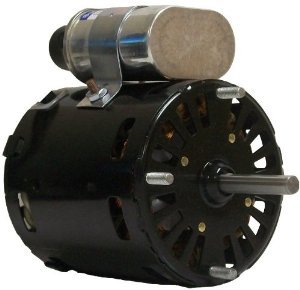

D1122 Fasco Motor 1/16 HP, 1650/1300 RPM, 208-230 V, 1 Phase

* Image is for reference only

D1122 Fasco Motor 1/16 HP, 1650/1300 RPM, 208-230 V, 1 Phase

SKU: D1122
$190.22
Sale $190.22
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Permanent Split Capacitor (PSC); Capacitor Required: 2 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 10" Leads with Molded Plug
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/16 Hp
Output KW: 0.04 kW Voltage: 208-230 V
Speed: 1300/1650 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 50 Hz Current: 0.40 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.57 in
Frame Length: 3.40 in Shaft Diameter: 0.313 in
Shaft Extension: 1.69 in

General Specifications

UPC: 815585028390 Weight: 4.00 LB
Packaged Length: 8.00 IN Packaged Width: 5.63 IN
Packaged Height: 5.00 IN Country of Origin: Mexico
