D1121 Fasco Motor 1/20 HP, 1550 RPM, 208-230 V, 1 Phase

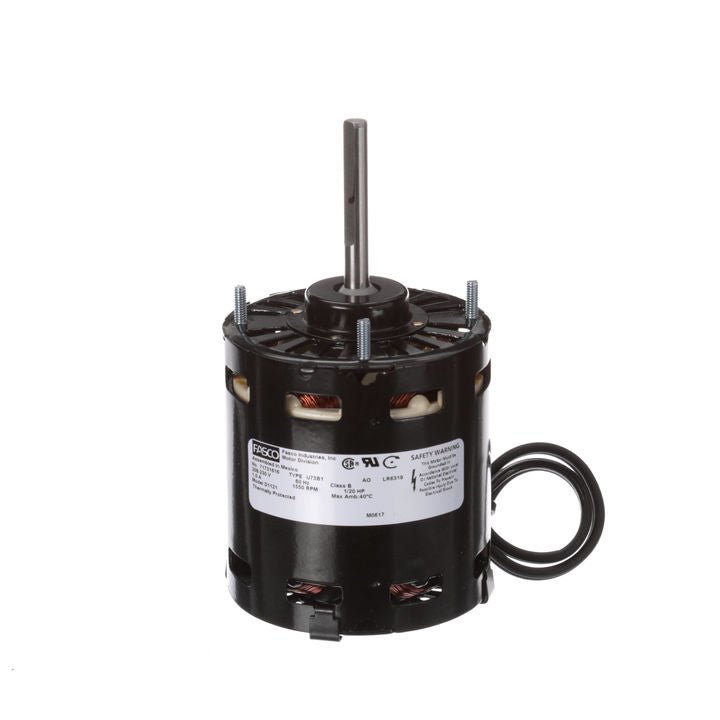

* Image is for reference only

D1121 Fasco Motor 1/20 HP, 1550 RPM, 208-230 V, 1 Phase

SKU: D1121
$148.16
Sale $148.16
Description

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 10" Leads with Molded Plug
  • Extended Studs Shaft End, Round Hub Shaft End and Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 208/230 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.00 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 6.52 in
Frame Length: 3.30 in Shaft Diameter: 0.313 in
Shaft Extension: 2.5 in

General Specifications

UPC: 815585028383 Weight: 5.00 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
